Compression Load Cell

LL102-M2

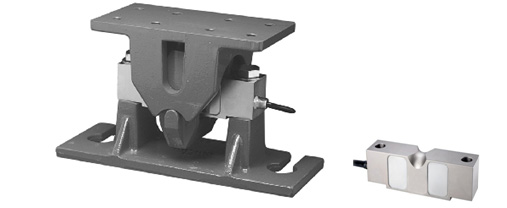

Double Ended Beam Load Cells

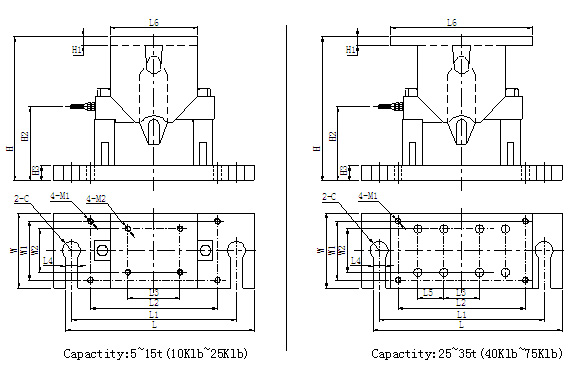

Dimensions:

Unit: mm

Cap/Size	L	L1	L2	L3	L4	L5	L6	W	W1	W2
10~25 klb	355.6	279.4	220.0	76.2	22.5	---	152.4	152.4	115.0	76.2
40~75 klb	457.2	355.6	277.0	101.6	22.5	76.2	324.0	177.8	137.0	88.9
Cap/Size	C	H	H1/H3	H2	M1	M2
10~25 klb	44.5	222.3	15.7	117.3	5/8-11UNC-2B	1/2-20UNF
40~75 klb	50.8	266.0	19.0	138.2	3/4-10UNC-2B	1/2-20UNF

Product Characteristics:

Double Ended Beam Load Cells LL102-M2 are available in the capacities 10~200klb. Equipped with center-loaded double-ended shear beam for industry applications. Center-pivoted, tension loading design, self-checking, multi- directional movement .Easy installation, maintenance-free. high stable installation and high accuracy. The load cell applications in all kinds of weighing scale (truck scales, Weighing Scale, weighing equipment, on-board truck scales, truck weigh scale, truck weigh scales, electronic truck scale, digital truck scale, digital railway scale, fully automatic truck scale, car scale, construction truck weighing scale, weighbridge, weighing systems, tank and hopper weighing and vehicle scales)

Technical Parameter:

Rated Load:	20/30/40/45/50/60/100t(50/60/65/75/100/125/150/200/250klb
Sensitivity:	(3.0±0.1%) mv/v
Combined Error:	±0.03% F.S
Creep Error（30min）:	±0.02% F.S
Zero Balance:	±1% F.S
Tco:	±0.02% F.S/10℃
Tc Span:	±0.02% F.S/10℃
Input Resistance:	750±5Ω
Output Resistance:	703±2Ω
Insulation Resistance:	≥5000MΩ
Operating Temp. Range:	-30~+70℃
Maximum Safe Over Load:	150%F.S
Ultimate Over Load:	250%F.S
Recommend Excitation Vol.:	10~12V DC
Maximum Excitation Vol.:	15V DC
Sealing Class:	IP67/IP68
Element Material:	Alloy Steel, Stainless Steel
Cable:	Length=L:12m
Citation:	GB/T7551-2008/ OIML R60
Mode Of Connection:	Red(Input+),Black(Input-),Green(Output+),White(Output-)
