Compression Load Cell

Compression Load Cell

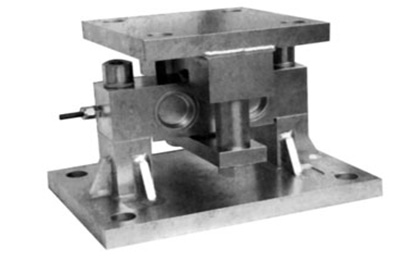

LL102-M

Double Ended Beam Load Cells

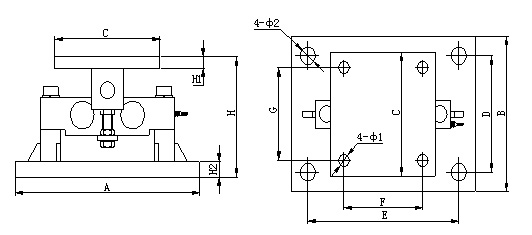

Dimensions:
Unit: mm

Cap/Size
A
B
C
D
E
F
G
H
H1
H2
φ1
φ2
10~25 klb
254
203
203
152
190.5
152
152
165
19.1
19.1
19.8
19.8
40klb
355.6
254
203
190.5
292.1
152
152
198
19.1
25.4
19.8
28.4
50~75 klb
355.6
254
229
190.5
292.1
165
165
241.3
25.4
25.4
28.4
28.4

Product Characteristics:
Double Ended Beam Load Cells LL102-M are available in the capacities 10~200klb Double shear beam and they are suitable for platform scale, truck scale ,hopper weighing applications and other electronic weighing devices. The load cell applications in all kinds of weighing scale (truck scales, Weighing Scale, weighing equipment, weighing, weigh, standard truck scales, portable truck scales, on-board truck scales, truck weigh scales, electronic truck scale, digital truck scale, axle scale, digital railway scale, explosion-proof truck scale, fully automatic truck scale, car scale, construction truck weighing scale, weighbridge, weighing systems, tank and hopper weighing and vehicle scales)
Technical Parameter:

Rated Load:
20/30/40/45/50/60/100t(50/60/65/75/100/125/150/200/250klb
Sensitivity:
(3.0±0.1%) mv/v
Combined Error:
±0.03% F.S
Creep Error(30min):
±0.02% F.S
Zero Balance:
±1% F.S
Tco:
±0.02% F.S/10
Tc Span:
±0.02% F.S/10
Input Resistance:
750±5Ω
Output Resistance:
703±2Ω
Insulation Resistance:
≥5000MΩ
Operating Temp. Range:
-30~+70
Maximum Safe Over Load:
150%F.S
Ultimate Over Load:
250%F.S
Recommend Excitation Vol.:
10~12V DC
Maximum Excitation Vol.:
15V DC
Sealing Class:
IP67/IP68
Element Material:
Alloy Steel, Stainless Steel
Cable:
Length=L:12m
Citation:
GB/T7551-2008/ OIML R60
Mode Of Connection:
Red(Input+),Black(Input-),Green(Output+),White(Output-)
