Compression Load Cell

LL102

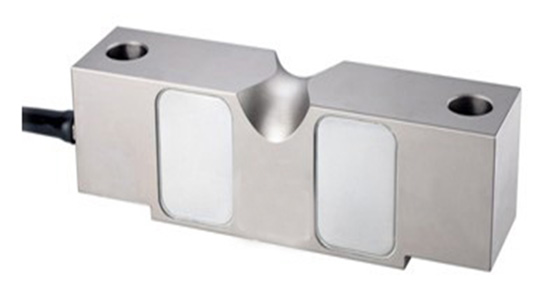

Double Ended Beam Load Cells

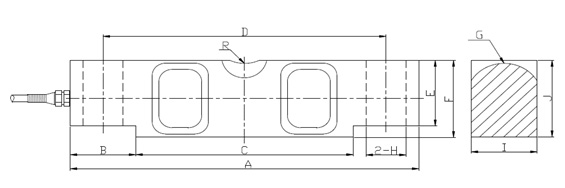

Dimension:

Unit:mm

Cap./Size	A	B	C	D	E	F	G	H	I	J	R
10~25Klb	197.0	35.0	127.0	165.0	43.2	49.3	22.9	18.0	43.4	47.5	19.0
40Klb	260.4	49.0	162.4	216.0	53.8	62.0	28.5	20.6	50.0	59.4	25.4
50~75 Klb	260.4	49.0	162.4	21.6	67.0	74.7	34.8	26.9	61.7	72.1	25.4
100~125 Klb	387.0	80.0	227.0	324.0	87.0	98.0	45.7	41.5	73.9	94.7	38.1
200Klb	489.0	101.6	285.8	387.0	130.0	147.3	45.7	41.5	96.5	130.1	50.8

Product Characteristics:

Double Ended Beam Load Cells LL102 are available in the capacities 10~200klb Double shear beam and they are suitable for platform scale, truck scale ,hopper weighing applications and other electronic weighing devices. The load cell applications in all kinds of weighing scale (truck scales, Weighing Scale, weighing equipment, weighing, weigh, standard truck scales, portable truck scales, on-board truck scales, truck weigh scale, truck weigh scales, electronic truck scale, digital truck scale, axle scale, digital railway scale, explosion-proof truck scale, fully automatic truck scale, car scale, construction truck weighing scale, weighbridge, weighing systems, tank and hopper weighing and vehicle scales)

Technical Parameter:

Rated Load:	10~200klb
Sensitivity:	(3.0±0.1%) mV/V
Combined Error:	±0.03% F.S
Creep Error（30min）:	±0.02% F.S
Zero Balance:	±1% F.S
Tco:	±0.02% F.S/10℃
Tc Span:	±0.02% F.S/10℃
Input Resistance:	750±5Ω
Output Resistance:	702±3Ω, 702±5Ω (L≥15m)
Insulation Resistance:	≥5000MΩ
Operating Temp.Range:	-30~+70℃
Maximum Safe Over Load:	150%F.S
Ultimate Over Load:	300%F.S
Recommend Excitation:	10~12V DC
Max. Excitation:	15V DC
Sealing Class:	IP67/IP68
Element Material:	A:Alloy Steel, SS:Stainless Steel
Cable:	Length=L:12m(10~40klb,5~15t),16m(50~75klb,20~40t)
Citation:	GB/T7551-2008/ OIML R60
Mode Of Connection:	Red(Input+),Black(Input-),Green(Output+),White(Output-)
