Compression Load Cell

LL101-M

Double Ended Beam Load Cells

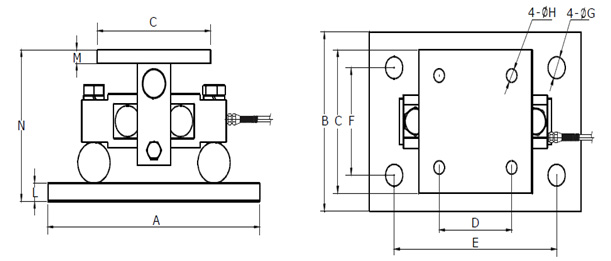

Dimensions:

Unit: mm(inch)

Cap./Size	A	B	C	D	E	F	G	H	L	M	N
5~20klb	11.00	8.00	5.50	3.00	8.00	4.00	1.06	0.63	0.75	0.50	5.48
30~75klb	15.00	10.00	8.00	5.13	11.50	6.00	1.22	0.75	1.00	0.75	8.43
100~150klb	18.00	12.00	10.00	7.50	14.00	9.00	1.38	0.81	1.25	1.25	10.39
200klb	26.00	12.00	12.00	9.00	20.00	9.00	1.88	1.06	2.00	2.00	15.73

Product Characteristics:

Double ended beam load cells LL101-M load cell are available in the capacities 50klb~250kl, 20t~100t. Complete welded, oil-proof, waterproof and resistance for normal corrosive gas or medium, Suitable for multiform environments. The load cell applications in all kinds of weighing scale (truck scales, Weighing Scale, weighing equipment, weighing, weigh, standard truck scales, portable truck scales, on-board truck scales, truck weigh scale, truck weigh scales, electronic truck scale, digital truck scale, axle scale, digital railway scale, explosion-proof truck scale, fully automatic truck scale, car scale, construction truck weighing scale, weighbridge, weighing systems, tank and hopper weighing and vehicle scales)

Technical Parameter:

Rated Load:	5/10/20/30/60/100/150/200klb
Sensitivity:	(2.0±0.1%) mV/V
Combined Error:	±0.03% F.S
Creep Error（30min）:	±0.02% F.S
Zero Balance:	±1% F.S
Tco:	±0.02% F.S/10℃
Tc Span:	±0.02% F.S/10℃
Input Resistance:	750±5Ω
Output Resistance:	703±2Ω
Insulation Resistance:	≥5000MΩ
Operating Temp. Range:	-30~+70℃
Maximum Safe Over Load:	150%F.S
Ultimate Over Load:	250%F.S
Recommend Excitation:	10~12V DC
Maximum Excitation:	15V DC
Sealing Class:	IP67/IP68
Element Material:	A: Alloy Steel, SS: Stainless Steel
Cable:	Length=L:12m
Citation:	GB/T7551-2008/ OIML R60
Mode Of Connection:	Red(Input+),Black(Input-),Green(Output+),White(Output-)
