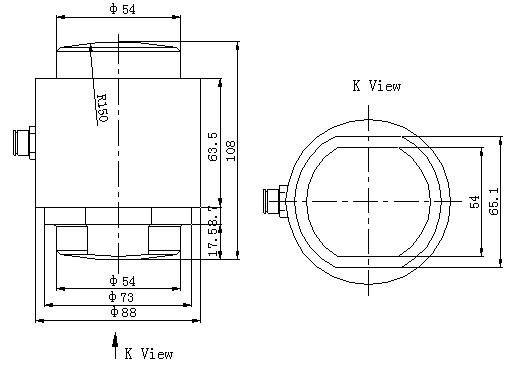

Dimensions:Unit: mm
|
Rated Load:
|
10/15/20t
|
|
Sensitivity:
|
(2.0±0.1%) m V/V
|
|
Combined Error:
|
±0.05% F.S
|
|
Creep Error（30min）:
|
±0.05% F.S
|
|
Zero Balance:
|
±1% F.S
|
|
Temp. Effect On Zero:
|
±0.05% F.S/10℃
|
|
Temp. Effect On Span:
|
±0.05% F.S/10℃
|
|
Input Resistance:
|
385±5Ω
|
|
Output Resistance:
|
352±2Ω
|
|
Insulation Resistance:
|
≥5000MΩ
|
|
Operating Temperature Range:
|
-30~+70℃
|
|
Maximum Safe Over Load:
|
150%F.S
|
|
Ultimate Over Load:
|
300%F.S
|
|
Recommend Excitation Voltage:
|
10~12V DC
|
|
Maximum Excitation Voltage:
|
15V DC
|
|
Sealing Class:
|
IP67/IP68
|
|
Element Material:
|
-A:Alloy Steel, -SS: Stainless Steel
|
|
Cable:
|
Length=12m
|
|
Citation:
|
GB/T7551-2008/ OIML R60
|
|
Mode Of Connection:
|
PIN 1 (Input+), PIN 2(Input-),
PIN 13(Output+), PIN 13(Output-)
|
