Multi-column Load Cell
|
Capacity:
|
3000/5000 kN
|
Insulation Resistance:
|
＞2000MΩ
|
|
Accuracy:
|
0.1%FS
|
Temperature Effect On Sensitivity:
|
＜0.1%FS/ 10℃
|
|
Sensitivity:
|
2.0 m V/V
|
Temperature Effect On Zero Balance:
|
＜0.1%FS/ 10℃
|
|
Non-Linearity:
|
≤0.1%FS
|
Reference Excitation Voltage:
|
10V (DC)
|
|
Repeatability:
|
≤0.05%FS
|
Nominal Range Of Excitation Voltage:
|
6~12V(DC)
|
|
Hysteresis:
|
≤0.1%FS
|
Service Temperature:
|
-30~70℃
|
|
Input Resistance:
|
380Ω
|
Safe Load Limit:
|
150%FS
|
|
Out Resistance:
|
350Ω
|
|
|
|

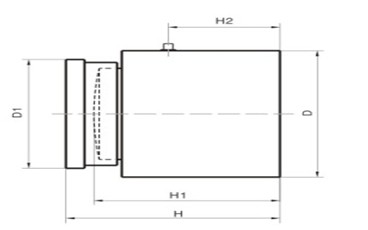

Cap. / Size
|
D
|
D1
|
H
|
H1
|
H2
|
|
3000kN
|
215
|
185
|
230
|
200
|
120
|
|
5000kN
|
268
|
230
|
270
|
233
|
140
|
