Compression Column Load Cell

LL437

Truck And Tank Weighing Load Cell

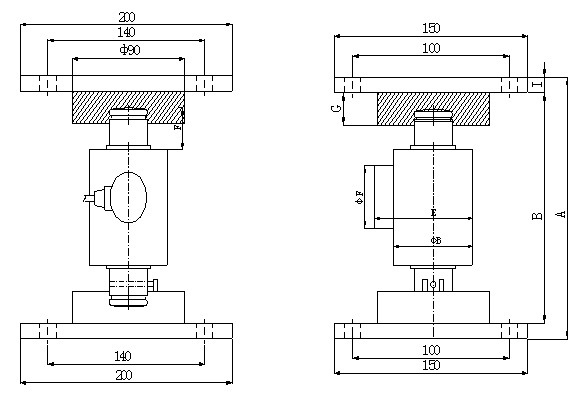

Dimension:

Unit:mm

Cap. / Size	A	B	C	D	E	F	G
10~30t	194	150	45	76	107	51	25
50t	254	190	45	76	107	51	31

Features:
The load cell meet 10~50t. Economic rocker pin design. Built in lightening protection device. This product is suitable for use in road and rail weighbridges and process weighing applications, truck and rail weighbridges, silo and hopper weighing, process weighing and weighing equipment.
Technical Parameter:

Rated Load:	10/20/25/30/40/50 t
Sensitivity:	(2.0±0.1%) m V/V
Combined Error:	±0.02% F.S
Creep Error（30min）:	±0.02% F.S
Zero Balance:	±1% F.S
Temp. Effect On Zero:	±0.02% F.S/10℃
Temp. Effect On Span:	±0.02% F.S/10℃
Input Resistance:	750±5Ω
Output Resistance:	702±2Ω
Insulation Resistance:	≥5000MΩ
Operating Temp. Range:	-30~+70℃
Maximum Safe Over Load:	150%F.S
Ultimate Over Load:	300%F.S
Recommend Excitation:	10~12V DC
Maximum Excitation:	15V DC
Sealing Class:	IP67/IP68
Element Material:	-A: Alloy Steel, -SS: Stainless Steel
Cable:	Length =13m(10~30t),16m(50t)
Citation:	GB/T7551-2008/ OIML R60
Mode Of Connection:	Red(Input+),Black(Input-),Green(Output+ White(Output-)
