Compression Column Load Cell

LL436

Truck And Tank Weighing Load Cell

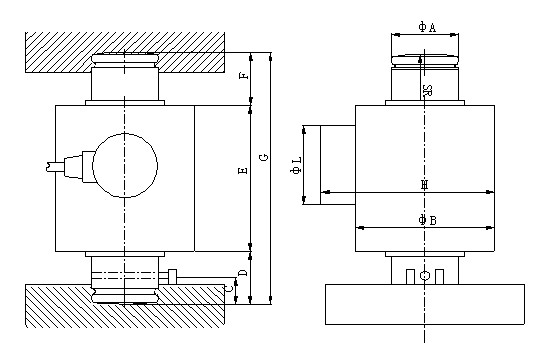

Dimension：

Unit: mm

Cap. /Size	A	B	C	D	E	F	G	H	L	R
10~30t	44	76	22	35	91	24	150	107	51	190
50t	44	76	22	55	91	44	190	107	51	250

Features:
The load cell meet 10~50t. Economic rocker pin design. Built in lightening protection device. This product is suitable for use in road and rail weighbridges and process weighing applications, truck and rail weighbridges, silo and hopper weighing, process weighing and weighing equipment.
Technical Parameter:

Rated Load:	10/20/25/30/40/50t
Sensitivity:	(2.0±0.1%) m V/V
Combined Error:	±0.02% F.S
Creep Error（30min）:	±0.02% F.S
Zero Balance:	±1% F.S
Temp. Effect On Zero:	±0.02% F.S/10℃
Temp. Effect On Span:	±0.02% F.S/10℃
Input Resistance:	750±5Ω
Output Resistance:	702±2Ω
Insulation Resistance:	≥5000MΩ
Operating Temp. Range:	-30~+70℃
Maximum Safe Over Load:	150%F.S
Ultimate Over Load:	300%F.S
Recommend Excitation:	10~12V DC
Maximum Excitation:	15V DC
Sealing Class:	IP67/IP68
Element Material:	-A: Alloy Steel, -SS: Stainless Steel
Cable:	Length =13m(10~30t) ,16m(50t)
Citation:	GB/T7551-2008/ OIML R60
Mode Of Connection:	Red(Input+),Black(Input-),Green(Output+ White(Output-)
