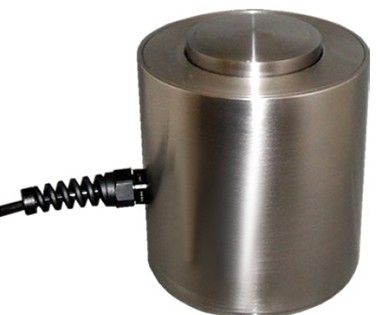

Compression Column Load Cell

LL430 Load Cell

Compression Load cell / Compression Load cells

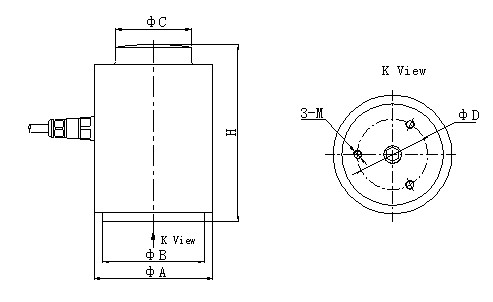

Dimension:

Unit: mm

Cap/Size	A	B	C	D	H	M
10~30t	100	91	48	52	110	M8 deep 50
50~100t	136	123	64	95	145	M12 deep 65

Description:
Compression load cell / column load cell LL430 load cells. We can produce the load cell with analog load cells, digital load cells, wireless load cells, stainless steel load cells, alloy steel load cell, high temperature load cell, anti-lighting load cell. They offer electronic hermetic sealing, oil proof, waterproof, anti-corrosive gas and medium them lightening protection in all kinds of environments. Weighing Scale, weighing equipment, weighing, truck weigh scale, truck weigh scales, electronic truck scale, digital truck scale, axle scale, digital railway scale, explosion-proof truck scale, car scale, construction truck weighing scale, weighbridge, weighing systems, tank and hopper weighing and vehicle scales
Technical Parameter:

Rated Load:	10/20/30/50/75/100t
Sensitivity:	(2.0±0.1%)) m V/V
Combined Error:	±0.03%F.S
Creep Error（30min）:	±0.03% F.S
Zero Balance:	±1% F.S
Temp. Effect On Zero:	±0.05% F.S/10℃
Temp. Effect On Span:	±0.05% F.S/10℃
Input Resistance:	750±5Ω
Output Resistance:	701±2Ω
Insulation Resistance:	≥5000MΩ
Operating Temperature Range:	-30~+70℃
Maximum Safe Over Load:	150%F.S
Ultimate Over Load:	200%F.S
Recommend Excitation Voltage:	10~12V DC
Maximum Excitation Voltage:	15V DC
Sealing Class:	IP67/IP68
Element Material:	Alloy Steel/ Stainless Steel
Cable:	Length= 12m
Citation:	GB/T7551-2008/ OIML R60
Mode Of Connection:	Red(Input+),Black(Input-),Green(Output+),White(Output-)
