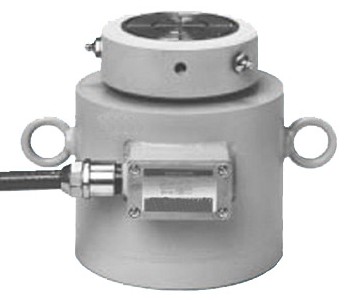

Compression Column Load Cell

LL431

Compression Column Load Cell For Weighbridges

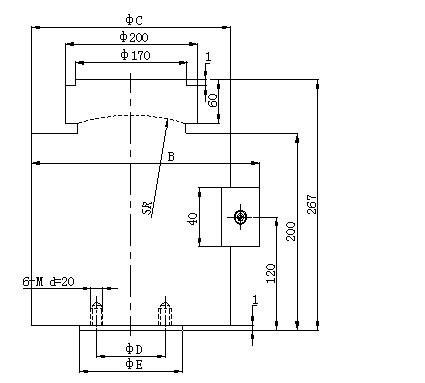

Dimension: in mm

Cap/Size	B	C	D	E	SR	M
200t	246	210	90	135	180	M14
5000t	277	240	130	170	230	M16

Description:
Compression column load cell for weighbridges LL430 load cells. We can produce the load cell with analog load cells, digital load cells, wireless load cells, stainless steel load cells, alloy steel load cell, high temperature load cell, anti-lighting load cell. They offer electronic hermetic sealing, oil proof, waterproof, anti-corrosive gas and medium them lightening protection in all kinds of environments. Weighing Scale, weighing equipment, weighing, truck weigh scales, electronic truck scale, digital truck scale, axle scale, digital railway scale, explosion-proof truck scale, car scale, construction truck weighing scale, weighbridge, weighing systems.
Technical Parameter:

Rated Load:	200/500t
Sensitivity:	(2.0±0.1%) mV/V
Combined Error:	±0.5% F.S
Creep Error（30min）:	±0.1% F.S
Zero Balance:	±1% F.S
Temp. Effect On Zero:	±0.05% F.S/10℃
Temp. Effect On Span:	±0.05% F.S/10℃
Input Resistance:	385±5Ω
Output Resistance:	350±2Ω
Insulation Resistance:	≥5000MΩ
Operating Temperature Range:	-30~+70℃
Maximum Safe Over Load:	150%F.S
Ultimate Over Load:	200%F.S
Recommend Excitation Voltage:	10~12V DC
Maximum Excitation Voltage:	15V DC
Sealing Class:	IP67
Element Material:	Alloy Steel / Stainless Steel
Cable:	Length=L:16m
Citation:	GB/T7551-2008/ OIML R60
Mode Of Connection:	Red(Input+),Black(Input-),Green(Output+),White(Output-)
