Compression Column Load Cell

LL429

Truck Scale Load Cell

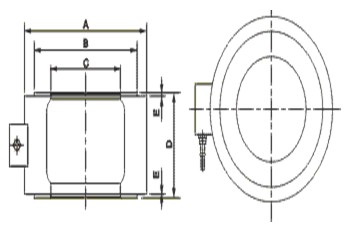

Dimensions:

Unit: in mm

Size	Capacity
Size	500kg	1t	2t	3t	5t	10t	20t	50t	100t	200t	300t
A	40.0	62.0	62.0	62.0	60.0	60.0	90.0	115.0	166.0	236.0	236.0
B	35.0	55.0	55.0	55.0	36.0	36.0	68.0	109.0	141.0	190.0	195.0
C	10.0	18.0	18.0	18.0	18.0	18.0	43.0	80.0	85.0	120.0	120.0
D	50.0	74.0	70.0	70.0	70.0	80.0	80.0	110.0	110.0	120.0	120.0
E	1.0	2.0	2.0	2.0	2.0	2.0	3.0	3.0	3.0	3.0	3.0

Product Characteristics:
Truck scale load cell LL429,Hollow structure, alloy steel material. Low profile, span shock resistance. Good machine technics, strict production flow controlled. OIML approved load cells for trade approved applications. We can produce the load cell with analog load cells, digital load cells, wireless load cells, stainless steel load cells, alloy steel load cell, high temperature load cell, anti-lighting load cell. Used to control rolling force in metallurgy industry process control devices and other measuring equipments, as well as used in architecture industry, truck weigh scale, truck weigh scales, electronic truck scale, digital truck scale, digital railway scale, construction truck weighing scale, weighbridge, weighing systems.
Technical Parameter:

Rated Load:	0.5/1/2/3/5/10/20/50/100/200/300t
Sensitivity:	(1.0±0.1%) mV/V
Combined Error:	±0.03% F.S
Creep Error（30min）:	±0.01% F.S
Zero Balance:	±1% F.S
Temp. Effect On Zero:	±0.01% F.S/10℃
Temp. Effect On Span:	±0.05% F.S/10℃
Input Resistance:	385±10Ω
Output Resistance:	350±3Ω
Insulation Resistance:	≥5000MΩ
Operating Tem. Range:	-30~+70℃
Maximum Safe Over Load:	150%F.S
Ultimate Over Load:	250%F.S
Recommend Excitation:	10~12V DC
Maximum Excitation:	15V DC
Sealing Class:	IP67/IP68
Element Material:	-A: Alloy Steel, -SS: Stainless Steel
Cable:	Length=12m(0.5~10t), 18m(30~300t)
Citation:	GB/T7551-2008/ OIML R60
Mode Of Connection:	Red(Input+),Black(Input-),Green(Output+),White(Output-)
