Compression Column Load Cell

LL426

Column Compression Sensor / Column Compression Load Cell

Unit: mm

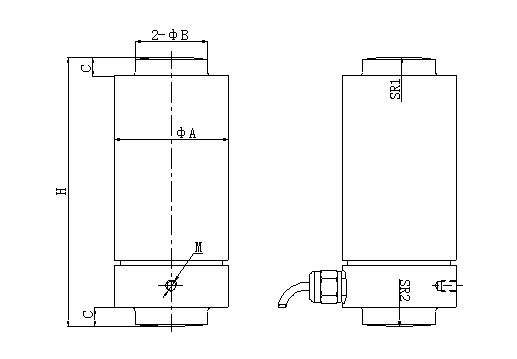

Cap/Size	A	B	C	H	M	SR1	SR2
3-30t	54	42	13	135	M10	200	250
50-100t	89	64	30	190	M12	300	300
150-200t	115	90	20	210	M16	400	400
300t	121	110	20	240	M16	400	400
500t	180	130	25	350	M12	600	600

Product Characteristics:

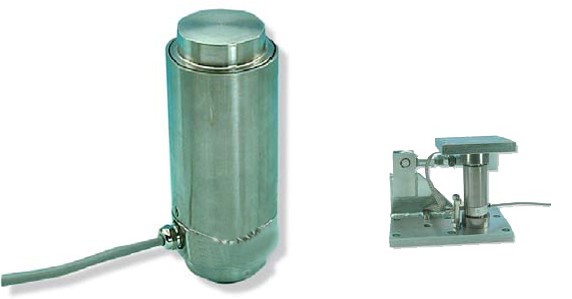

Column compression sensor for weighbridges LL426 Canister, high capacity load cell (from 3 to 500t); Totally made of alloy steel or stainless steel. Protection IP67. Pendular technology (self restoring pendle function); Optimized for parallel connection; A whole range of mounting accessories is proposed; Available in IP68 version; OIML approved load cells for trade approved applications. We can produce the load cell with analog load cells, digital load cells, wireless load cells, stainless steel load cells, alloy steel load cell, high temperature load cell, anti-lighting load cell. The load cell application in weighbridges, tanks or hoppers weighing, high capacity reactors, train scales, digital truck scale, axle scale, digital railway scale, explosion-proof truck scale, weighbridge, weighing systems. etc.
Technical parameter:

Rated Load:	3/5/10/20/3050/100/150/200/300/500t
Sensitivity:	(2.0±0.1%) mV/V
Combined Error:	±0.1% F.S
Creep Error（30min）:	±0.02% F.S
Zero Balance:	±1% F.S
Temp. Effect On Zero:	±0.02% F.S/10℃
Temp. Effect On Span:	±0.02% F.S/10℃
Input Resistance:	750±5Ω
Output Resistance:	702±2Ω
Insulation Resistance:	≥5000MΩ
Operating Temperature Range:	-30~+70℃
Maximum Safe Over Load:	150%F.S
Ultimate Over Load:	300%F.S
Recommend Excitation Voltage:	10~12V DC
Maximum Excitation Voltage:	15V DC
Sealing Class:	IP67/IP68
Element Material:	Alloy Steel / Stainless Steel
Cable:	Length=L:13m
Citation:	GB/T7551-2008/ OIML R60
Mode Of Connection:	Red(Input+),Black(Input-),Green(Output+),White(Output-)
