Compression Column Load Cell

LL427

Compression Load Cell / Column Compression Sensor

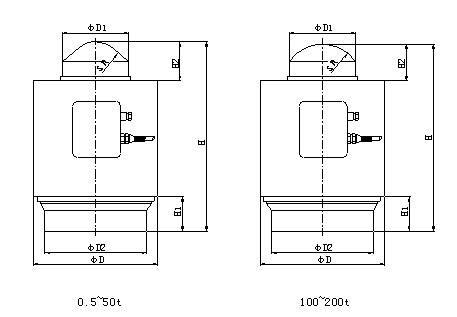

Dimension: in mm

Unit: mm

Cap/Size	H	D	SR	H1	H2	D1	D2
0.5~5t	138.5	89	15	18	24	30	70
10-20t	138.5	89	15	18	24	30	70
30-50t	138.5	89	35	18	24	46	70
100t	200	120	50	43	33	76	105
200t	270	159	70	57	46	108	143

Product Characteristics:
Column compression sensor for weighbridges LL27 the type is a stainless steel or alloy steel self centering rocker column load cell with complete hermetic sealing. With wide range of capacities from 0.5~200t. OIML approved load cells for trade approved applications. We can produce the load cell with analog load cells, digital load cells, wireless load cells, stainless steel load cells, alloy steel load cell, high temperature load cell, anti-lighting load cell. Application in weighbridges, hoppers, tanks and silos, weigh, standard truck scales, portable truck scales, on-board truck scales, truck weigh scale, truck weigh scales, electronic truck scale, digital truck scale, axle scale, digital railway scale, explosion-proof truck scale, weighbridge, weighing systems.
Technical Parameter:

Rated Load:	0.5~200t
Sensitivity:	(1.0±0.1%) mV/V
Combined Error:	0.03/0.05/C1
Creep Error（30min）:	±0.03% F.S
Zero Balance:	±1% F.S
Temp. Effect On Zero:	±0.02% F.S/10℃
Temp. Effect On Span:	±0.02% F.S/10℃
Input Resistance:	650±5Ω
Output Resistance:	603±2Ω
Insulation Resistance:	≥5000MΩ
Operating Temperature Range:	-30~+70℃
Maximum Safe Over Load:	150%F.S
Ultimate Over Load:	200%F.S
Recommend Excitation Voltage:	10~12V DC
Maximum Excitation Voltage:	15V DC
Sealing Class:	IP68
Element Material:	Alloy Steel
Cable:	Length=L:12m
Citation:	GB/T7551-2008/ OIML R60
Mode Of Connection:	Red(Input+),Black(Input-),Green(Output+),White(Output-)t-)
