Compression Column Load Cell

LL425

Weigh Bridge Load Cells

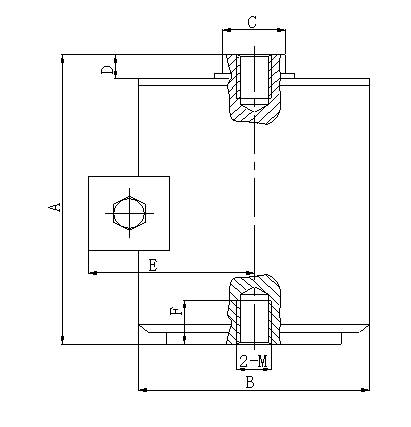

Dimension:

Unit: mm

Cap/Size	A	B	C	D	E	M	F
0.5-3klb	115.8	89.6	15.9	6.4	73.2	1/2-20	22
5-10klb	150.9	89	34.3	9.4	73.2	1-14	32
20-30klb	215.9	127	63.5	13.5	90.8	3/2-12	51
50-100klb	290.6	165.1	76.2	13.5	112	12-12	70

Product Characteristics:
Weigh bridge load cells for weighbridges LL425 load cell column type, hermetically sealed structure, Compression, IP68, dual bridge optional; Simple to install, easy to use; OIML approved load cells for trade approved applications. We can produce the load cell with analog load cells, digital load cells, wireless load cells, stainless steel load cells, alloy steel load cell, high temperature load cell, anti-lighting load cell. Suitable for truck scale, railroad scale and other special scale, truck scales, Weighing Scale, weighing equipment, standard truck scales, portable truck scales, on-board truck scales, truck weigh scale, electronic truck scale, digital truck scale, axle scale, digital railway scale, fully automatic truck scale, car scale, construction truck weighing scale, weighbridge, weighing systems, tank and hopper weighing and vehicle scales.
Technical Parameter:

Rated Load:	0.5/1/2/3/5/10/20/30/50/100klb
Sensitivity:	(2.0±0.1%) mV/V
Combined Error:	±0.03% F.S
Creep Error（30min）:	±0.02% F.S
Zero Balance:	±1% F.S
Temp. Effect On Zero:	±0.02% F.S/10℃
Temp. Effect On Span:	±0.02% F.S/10℃
Input Resistance:	750±5Ω
Output Resistance:	702±2Ω
Insulation Resistance:	≥5000MΩ
Operating Temperature Range:	-30~+70℃
Maximum Safe Over Load:	150%F.S
Ultimate Over Load:	300%F.S
Recommend Excitation Voltage:	10~12V DC
Maximum Excitation Voltage:	15V DC
Sealing Class:	IP68
Element Material:	Alloy Steel / Stainless Steel
Cable:	Length=L:15m
Citation:	GB/T7551-2008/ OIML R60
Mode Of Connection:	Red(Input+),Black(Input-),Green(Output+),White(Output-)
