Weigh Modules and Load Cells
Product Description:

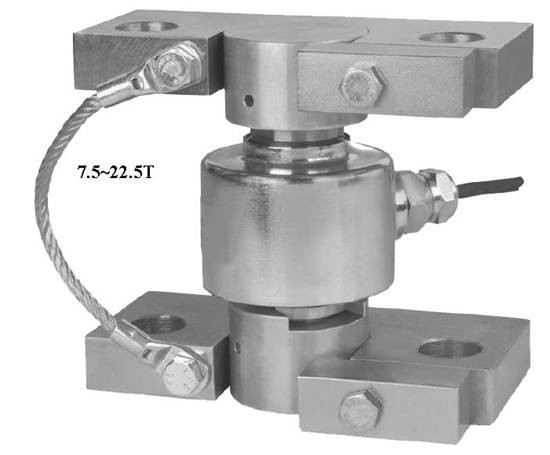

Compression column load cell for weighbridges LL418 load cell supports are designed to prevent unwanted forces from affecting load cell performance. OIML approved load cells for trade approved applications. We can produce the load cell with analog load cells, digital load cells, wireless load cells, stainless steel load cells, alloy steel load cell, high temperature load cell, anti-lighting load cell. The type GS418-M3 is a self aligning rocker system, combining excellent load introduction with low profile design. Especially designed for the GS418 load cells. Material: steel, zinc plated. An alignment fixture is available for accurate vertical alignment of the load cell. Application in weighbridges, portable truck scales, on-board truck scales, truck weigh scale, truck weigh scales, electronic truck scale, digital truck scale, axle scale, digital railway scale.
Technical parameter:
| Rated Load: | 7.5/15/22.5/30/40/50/100/150/300t> |
| Sensitivity:> | (3.0±0.1%) mV/V> |
| Combined Error:> | ±0.05% F.S> |
| Creep Error（30min）:> | ±0.02% F.S> |
| Zero Balance:> | ±1% F.S> |
| Temp. Effect On Zero:> | ±0.017% F.S/10℃> |
| Temp. Effect On Span:> | ±0.017% F.S/10℃> |
| Input Resistance:> | 750±5Ω> |
| Output Resistance:> | 702±2Ω> |
| Insulation Resistance:> | ≥5000MΩ> |
| Operating Tem. Range:> | -30~+70℃> |
| Maximum Safe Over Load:> | 150%F.S> |
| Ultimate Over Load:> | 250%F.S> |
| Recommend Excitation:> | 10~12V DC> |
| Maximum Excitation:> | 15V DC> |
| Sealing Class:> | IP67/IP68> |
| Element Material:> | -A: Alloy Steel, -SS: Stainless Steel> |
| Cable:> | Length=12m(7.5~22.5t), 18m(30~300t)> |
| Citation:> | GB/T7551-2008/ OIML R60 > |
| Mode Of Connection:> | Red(Input+),Black(Input-),Green(Output+),White(Output-)> |
