Weight Load Cell

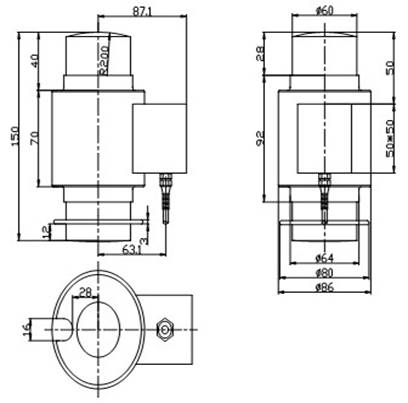

Dimensions:
Product Characteristics:

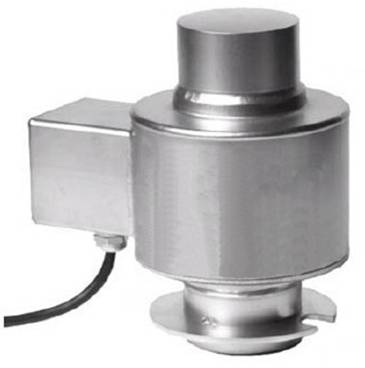

Weight load cell LL419 is a single column, stainless steel or alloy steel compression load cell. OIML approved load cells for trade approved applications. We can produce the load cell with analog load cells, digital load cells, wireless load cells, stainless steel load cells, alloy steel load cell, high temperature load cell, anti-lighting load cell. The welded construction and built-in surge protection ensure that this product can be used successfully in harsh environments. Applications in weighbridges and silo hopper weighing, hoppers, tanks and silos, standard truck scales, portable truck scales, on-board truck scales, truck weigh scale, truck weigh scales, electronic truck scale, digital truck scale, axle scale, digital railway scale, explosion-proof truck scale, weighbridge, weighing systems.
Technical Parameter:
| Rated Load: | 30t/40t/50t |
| Sensitivity: | (2.0±0.1%)m V/V |
| Combined Error: | ±0.05% F.S |
| Creep Error（30min）: | ±0.02% F.S |
| Zero Balance: | ±1% F.S |
| Temp. Effect On Zero: | ±0.017% F.S/10℃ |
| Temp. Effect On Span: | ±0.017% F.S/10℃ |
| Input Resistance: | 750±5Ω |
| Output Resistance: | 702±2Ω |
| Insulation Resistance: | ≥5000MΩ |
| Operating Temp. Range: | -30~+70℃ |
| Maximum Safe Over Load: | 150%F.S |
| Ultimate Over Load: | 250%F.S |
| Recommend Excitation: | 10~12V DC |
| Maximum Excitation: | 15V DC |
| Sealing Class: | IP67/IP68 |
| Element Material: | -A: Alloy Steel, -SS: Stainless Steel |
| Cable: | Length=13m |
| Citation: | GB/T7551-2008/ OIML R60 |
| Mode Of Connection: | Red(Input+),Black(Input-),Green(Output+),White(Output-) |
