Compression Column Load Cell

LL418-M2

Compression Column Load Cell For Weighbridges

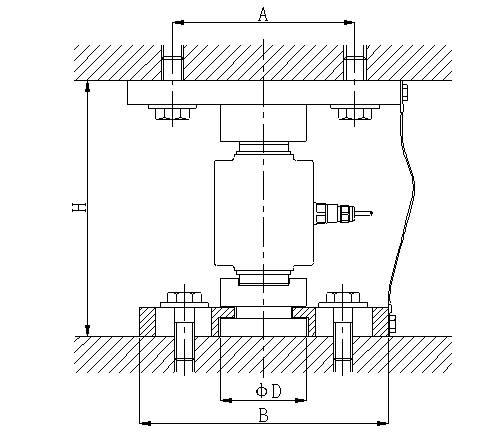

Unit: mm

Cap/Size	H	A	B	D
30t	200	110	176	68
40t	210	110	176	68
50t	240	130	196	88

Product Description:
Compression column load cell for weighbridges LL418-M2 load cell supports are designed to prevent unwanted forces from affecting load cell performance. OIML approved load cells for trade approved applications. We can produce the load cell with analog load cells, digital load cells, wireless load cells, stainless steel load cells, alloy steel load cell, high temperature load cell, anti-lighting load cell. The type GS418- M2 is a self aligning rocker system, combining excellent load introduction with low profile design. Especially designed for the GS418-M2 load cells. Material: steel, zinc plated. A mounting fixture is available for easy and accurate positioning of foundation plates. Application in weighbridges, hoppers, tanks and silos, weigh, standard truck scales, portable truck scales, on-board truck scales, truck weigh scale, truck weigh scales.
Technical parameter:

Rated Load:	7.5/15/22.5/30/40/50/100/150/300t
Sensitivity:	(3.0±0.1%) mV/V
Combined Error:	±0.05% F.S
Creep Error（30min）:	±0.02% F.S
Zero Balance:	±1% F.S
Temp. Effect On Zero:	±0.017% F.S/10℃
Temp. Effect On Span:	±0.017% F.S/10℃
Input Resistance:	750±5Ω
Output Resistance:	702±2Ω
Insulation Resistance:	≥5000MΩ
Operating Tem. Range:	-30~+70℃
Maximum Safe Over Load:	150%F.S
Ultimate Over Load:	250%F.S
Recommend Excitation:	10~12V DC
Maximum Excitation:	15V DC
Sealing Class:	IP67/IP68
Element Material:	-A: Alloy Steel, -SS: Stainless Steel
Cable:	Length=12m(7.5~22.5t), 18m(30~300t)
Citation:	GB/T7551-2008/ OIML R60
Mode Of Connection:	Red(Input+),Black(Input-),Green(Output+),White(Output-)
