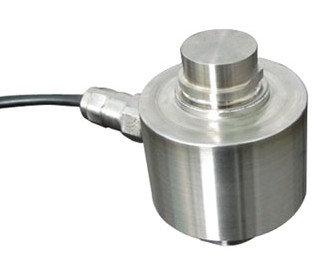

Compression Column Load Cell

LL418

Compression Column Load Cell For Weighbridges

Dimensions: Unit: mm

Cap./Size	H1	H2	H3	H4	H5	H6	D1	D2
7.5t	89	44	17	23	11	6	28	65
15t	89	44	17	23	11	6	28	65
22.5t	89	44	17	23	11	6	28	65
30t	140	70	26	28	13	6.5	39	81
40t	150	75	31	33	13	11.7	39	81
50t	178	89	32	34	17	8.5	44	99
100t	178	89	38.5	38.5	17	12	62	141.3
150t	210	105	42.7	42.7	20.6	12.8	76.2	165.1
300t	280	140	55.9	55.9	25	21.5	100	165.1

Product Characteristics:
Compression column load cell for weighbridges LL418 the type is a stainless steel or alloy steel self centering rocker column load cell with complete hermetic sealing. With wide range of capacities from 7.5t to 300t. OIML approved load cells for trade approved applications. We can produce the load cell with analog load cells, digital load cells, wireless load cells, stainless steel load cells, alloy steel load cell, high temperature load cell, anti-lighting load cell. It is a perfect fit for use in harsh industrial environments. Application in weighbridges, hoppers, tanks and silos, weigh, standard truck scales, portable truck scales, on-board truck scales, truck weigh scale, truck weigh scales, electronic truck scale, digital truck scale, axle scale, digital railway scale, explosion-proof truck scale, weighbridge, weighing systems.
Technical parameter:

Rated Load:	7.5/15/22.5/30/40/50/100/150/300t
Sensitivity:	(3.0±0.1%) mV/V
Combined Error:	±0.05% F.S
Creep Error（30min）:	±0.02% F.S
Zero Balance:	±1% F.S
Temp. Effect On Zero:	±0.017% F.S/10℃
Temp. Effect On Span:	±0.017% F.S/10℃
Input Resistance:	750±5Ω
Output Resistance:	702±2Ω
Insulation Resistance:	≥5000MΩ
Operating Tem. Range:	-30~+70℃
Maximum Safe Over Load:	150%F.S
Ultimate Over Load:	250%F.S
Recommend Excitation:	10~12V DC
Maximum Excitation:	15V DC
Sealing Class:	IP67/IP68
Element Material:	-A: Alloy Steel, -SS: Stainless Steel
Cable:	Length=12m(7.5~22.5t), 18m(30~300t)
Citation:	GB/T7551-2008/ OIML R60
Mode Of Connection:	Red(Input+),Black(Input-),Green(Output+),White(Output-)
