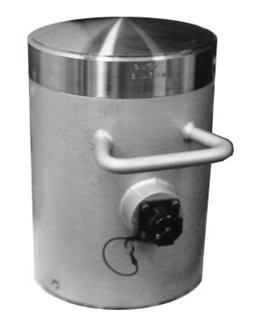

Compression Column Load Cell

LL417

Weight Sensor Load Cell

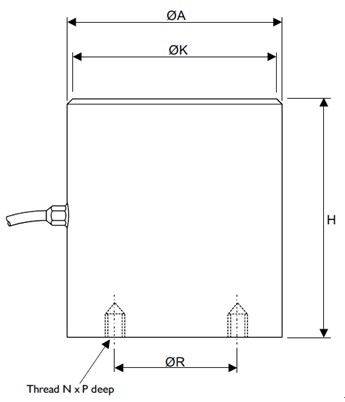

Dimensions:

Product Characteristics:
Weight sensor load cell The LL417 series are heavy duty general purpose load cells suited equally for Force Measurement and Weighing applications. Applications such as silo weighing, pile force measurement, heavy duty jack leveling systems, press calibration are just some of the applications that the GS417 feels as at home. The simple column design and sealed construction of the GS417 assures excellent resistance in the most volume users alike. Special versions can be manufactured to fit applications where the standard model is not quite suitable there is also the option of submersible versions and models with on-board signal conditioning, construction truck weighing scale, weighbridge, weighing systems, tank and hopper weighing and vehicle scales.
Technical Parameter：

Rated Load:	2/5/10/25/50t	100/200/500/1000t
Sensitivity:	2.0m V/V	2.0m V/V
Combined Error:	0.15 Rated Output	0.25Rated Output
Creep Error（30min）:
Zero Balance:
Temp. Effect On Zero:	0.010% of Applied Load/ °C	0.010
Temp. Effect On Span:	0.010	0.010
Input Resistance:
Output Resistance:
Insulation Resistance:	≥5000MΩ
Operating Temp. Range	-20°C to +70°C	-20°C to +70°C
Maximum Safe Over Load:	150%F.S	150%F.S
Ultimate Over Load:	300%F.S	300%F.S
Recommend Excitation:	10	10
Maximum Excitation:	15	15
Sealing Class:	IP65	IP65
Element Material:	-SS: Stainless Steel	-SS: Stainless Steel
Cable:	Length=4m 4Wire cable	Length=4m 4Wire cable
Citation:	Citation	GB/T7551-2008/ OIML R60
Mode Of Connection:	Red(Input+),Black(Input-),Green(Output+),White(Output-)	Red(Input+),Black(Input-),Green(Output+),White(Output-)
