Compression Column Load Cell

LL416

Compression Column Load Cell

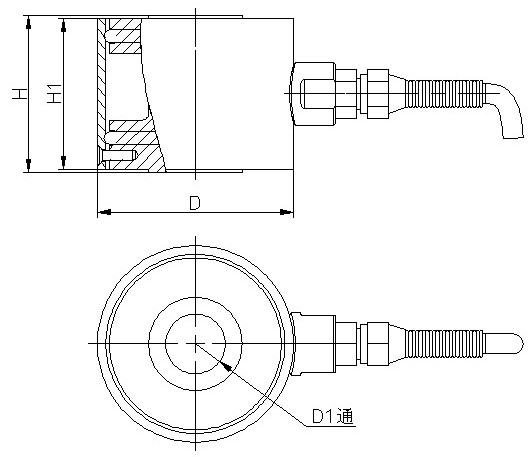

Dimension:

Cap.(t)	12	18/25	22	26	33	35	40	50
H	45	45	45	55	55	45	55	55
H1	43	43	43	53	53	43	53	53
D	Dia.56	Dia.56	Dia.56	Dia.76	Dia.76	Dia.56	Dia.76	Dia.76
D1	Dia.17	Dia.21	Dia.23	Dia.25	Dia.28	Dia.28	Dia.31	Dia.31/37

Product Characteristics:
LL416 load cells are available in the capacities 12~50t.Alloy Steel Stainless steel, sealed by adhesive inside, oil-proof, waterproof and anti-corrosion, suitable for all kinds of environments. Suitable for Force measuring device can be measured weighing devices.
Technical Parameter:

Rated Load:	12~50t
Sensitivity:	(2.0±0.1%) m V/V
Combined Error:	±0.05% F.S
Creep Error（30min）:	±0.05% F.S
Zero Balance:	±1% F.S
Temp. Effect On Zero:	±0.02% F.S/10℃
Temp. Effect On Span:	±0.02% F.S/10℃
Input Resistance:	385±5Ω
Output Resistance:	352±2Ω
Insulation Resistance:	≥5000MΩ
Operating Temp. Range	-30~+70℃
Maximum Safe Over Load:	150%F.S
Ultimate Over Load:	250%F.S
Recommend Excitation Vol.:	10~12V DC
Maximum Excitation Vol.:	15V DC
Sealing Class:	IP67
Element Material:	Alloy Steel, Stainless Steel
Cable:	Length=L: 3m
Citation:	GB/T7551-2008/ OIML R60
Mode Of Connection:	Red(Input+),Black(Input-),Green(Output+),White(Output-)
