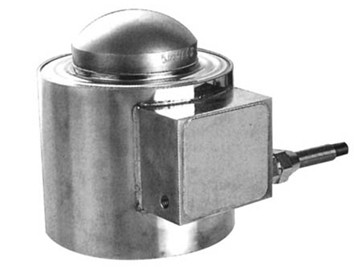

Compression Column Load Cell

LL414

Weight Load Cell

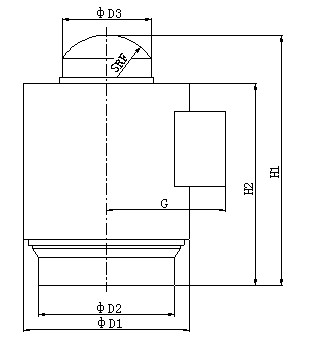

Dimensions:

Unit: mm

Cap/Size	D1	D2	D3	H1	H2	F	G
20~50t	87	70	56	138.5	112	35	62
80~150t	120	105	76	200	167	50	78
200t	159	143	108	270	220	70	100

Product Characteristics:
Weight load cell LL414 load cells are available in the capacities 2~50t. OIML approved load cells for trade approved applications. We can produce the load cell with analog load cells, digital load cells, wireless load cells, stainless steel load cells, alloy steel load cell, high temperature load cell, anti-lighting load cell. They offer electronic hermetic sealing, oil proof, waterproof, anti-corrosive gas and medium them lightening protection in all kinds of environments. Weighing Scale, weighing equipment, weighing, truck weigh scale, truck weigh scales, electronic truck scale, digital truck scale, axle scale, digital railway scale, explosion-proof truck scale, car scale, construction truck weighing scale, weighbridge, weighing systems, tank and hopper weighing and vehicle scales
Technical Parameter:

Rated Load:	2/3/5/15/20/25/30/40/50t
Sensitivity:	(1.0±0.1%) mV/V
Combined Error:	±0.03% F.S，±0.05% F.S
Creep Error（30min）:	±0.03% F.S
Zero Balance:	±1% F.S
Temp. Effect On Zero:	±0.02% F.S/10℃
Temp. Effect On Span:	±0.02% F.S/10℃
Input Resistance:	650±5Ω
Output Resistance:	603±2Ω
Insulation Resistance:	≥5000MΩ
Operating Temperature Range:	-30~+70℃
Maximum Safe Over Load:	150%F.S
Ultimate Over Load:	200%F.S
Recommend Excitation Voltage:	10~12V DC
Maximum Excitation Voltage:	15V DC
Sealing Class:	IP68
Element Material:	Alloy Steel / Stainless Steel
Cable:	Length=L:12m
Citation:	GB/T7551-2008/ OIML R60
Mode Of Connection:	Red(Input+),Black(Input-),Green(Output+),White(Output-)t-)
