Load Sensors

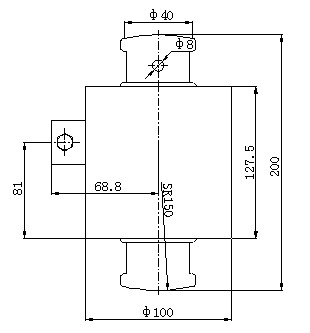

Dimensions:

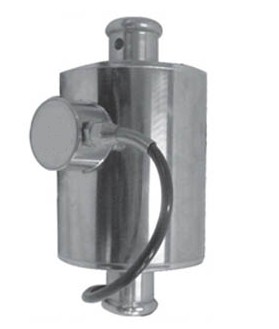

Product Characteristics:
Load sensors LL413 load cells OIML approved load cells for trade approved applications. We can produce the load cell with analog load cells, digital load cells, wireless load cells, stainless steel load cells, alloy steel load cell, high temperature load cell, anti-lighting load cell. They offer electronic hermetic sealing, oil proof, waterproof, anti-corrosive gas and medium them lightening protection in all kinds of environments. Weighing Scale, weighing equipment, weighing, truck weigh scale, truck weigh scales, electronic truck scale, digital truck scale, axle scale, digital railway scale, explosion-proof truck scale, car scale, construction truck weighing scale, weighbridge, weighing systems, tank and hopper weighing and vehicle scales
Technical Parameter:
| Rated Load: | 30/45t |
| Sensitivity: | (2.0±0.1%) mV/V |
| Combined Error: | ±0.03% F.S |
| Creep Error（30min）: | ±0.03% F.S |
| Zero Balance: | ±1% F.S |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ |
| Temp. Effect On Span: | ±0.02% F.S/10℃ |
| Input Resistance: | 750±5Ω |
| Output Resistance: | 703±2Ω |
| Insulation Resistance: | ≥5000MΩ |
| Operating Temp. Range: | -30~+70℃ |
| Maximum Safe Over Load: | 150%F.S |
| Ultimate Over Load: | 200%F.S |
| Recommend Excitation Vol.: | 10~12V DC |
| Maximum Excitation Vol.: | 15V DC |
| Sealing Class: | IP68 |
| Element Material: | Alloy Steel / Stainless Steel |
| Cable: | Length=L:10m |
| Citation: | GB/T7551-2008/ OIML R60 |
| Mode Of Connection: | Red(Input+),Black(Input-),Green(Output+),White(Output-)t-) |
