Compression Column Load Cell

LL412

Load Sensor

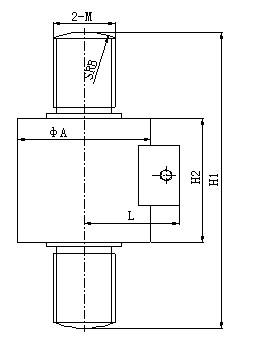

Dimensions:

Unit: mm

Cap/Size	A	B	H1	H2	L	M
10~20t	73	200	180	69.3	99.7	M36×3
20~30t	88.9	250	200	70	115.6	M42×3
40~60t	105	300	250	99.3	138.3	M56×4
100t	152.4	400	350	131.9	183.9	M76×4

Product Characteristics:
Load sensor LL412 Load cells are available in the capacities 10~100t. They offer alloy and stainless steel construction, electronic hermetic sealing, oil proof, waterproof, anti-corrosive gas and medium making them lightening protected in all kinds of environments. OIML approved load cells for trade approved applications. We can produce the load cell with analog load cells, digital load cells, wireless load cells, stainless steel load cells, alloy steel load cell, high temperature load cell, anti-lighting load cell. Single column design, automatically recovery and they are suitable for platform scale, automobile testing facilities, hopper scale and other electronic weighing devices.
Technical Parameter:

Rated Load:	10/20/30/40/50/60/100t
Sensitivity:	(1.5±0.1%) mV/V
Combined Error:	±0.03% F.S
Creep Error（30min）:	±0.03% F.S
Zero Balance:	±1% F.S
Temp. Effect On Zero:	±0.02% F.S/10℃
Temp. Effect On Span:	±0.02% F.S/10℃
Input Resistance:	750±5Ω
Output Resistance:	703±2Ω
Insulation Resistance:	≥5000MΩ
Operating Temp. Range:	-30~+70℃
Maximum Safe Over Load:	150%F.S
Ultimate Over Load:	200%F.S
Recommend Excitation Vol.:	10~12V DC
Maximum Excitation Vol.	15V DC
Sealing Class:	IP68
Element Material:	Alloy Steel / Stainless steel
Cable:	Length=L:16m
Citation:	GB/T7551-2008/ OIML R60
Mode Of Connection:	Red(Input+),Black(Input-),Green(Output+),White(Output-)t-)
