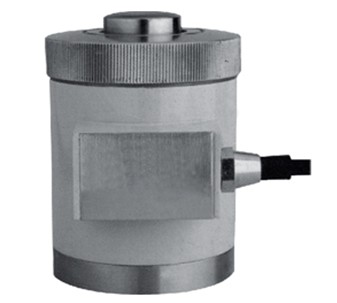

Compression Column Load Cell

LL411

Load Sensor

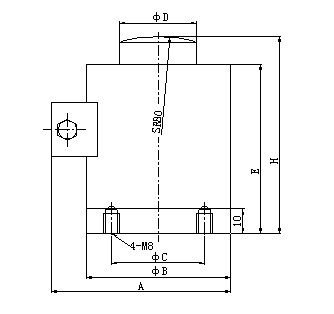

Dimensions:

Unit: mm

Cap/Size	A	B	C	D	E	H
2/3/5t	78	64	38	26	78	88
10t	88	76	46	30	84	106
15/20t	107	88	56	42	115	130

Product Characteristics:
Load sensor LL411 load cells .OIML approved load cells for trade approved applications. We can produce the load cell with analog load cells, digital load cells, wireless load cells, stainless steel load cells, alloy steel load cell, high temperature load cell, anti-lighting load cell. They offer electronic hermetic sealing, oil proof, waterproof, anti-corrosive gas and medium them lightening protection in all kinds of environments in Weighing Scale, weighing equipment, weighing, truck weigh scale, truck weigh scales, electronic truck scale, digital truck scale, axle scale, digital railway scale, explosion-proof truck scale, car scale, construction truck weighing scale, weighbridge, weighing systems, tank and hopper weighing and vehicle scales
Technical Parameter:

Rated Load:	2/3/5/10/15/20t
Sensitivity:	(2.0±0.1%) mV/V
Combined Error:	±0.05% F.S
Creep Error（30min）:	±0.03% F.S
Zero Balance：	±1% F.S
Temp. Effect On Zero:	±0.02% F.S/10℃
Temp. Effect On Span:	±0.02% F.S/10℃
Input Resistance:	750±5Ω
Output Resistance:	703±2Ω
Insulation Resistance:	≥5000MΩ
Operating Temperature Range:	-30~+70℃
Maximum Safe Over Load:	150%F.S
Ultimate Over Load:	200%F.S
Recommend Excitation Voltage:	10~12V DC
Maximum Excitation Voltage:	15V DC
Sealing Class:	IP68
Element Material:	Alloy Steel / Stainless Steel
Cable:	Length=L: Length: 6～12m；Diameter: ￠6mm
Citation：	GB/T7551-2008/ OIML R60
Mode Of Connection:	Red(Input+),Black(Input-),Green(Output+),White(Output-)t-)
