Compression Column Load Cell

LL410-M

Compression Load Cell

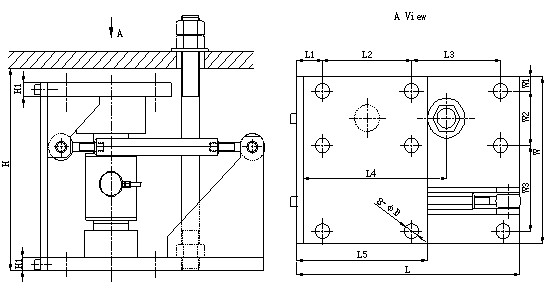

Dimensions:

Unit: mm

Cap/t	D	H	H1	L	L1	L2	L3	L4	L5	W	W1	W2	W3
10-40t	18	222.5	15	280	25	115	115	185	160	200	17.5	65	102.5
50-60t	18	282.5	15	280	25	115	115	185	160	200	17.5	65	102.5
100t	22	410	30	420	35	230	120	330	300	400	35	165	165

Product Characteristics:
The LL410-M is a column, low profile, compression load cell. The construction offers excellent insensitivity to eccentric loads whilst maintaining accuracy. This product is suitable for use in road and rail weighbridges and process weighing applications. The fully leak-tested welded construction, advanced cable entry and built-in surge protection tubes ensure that this product can be used successfully in harsh environments. This product meets the stringent weights and measures requirements. The load cell applications truck and rail weighbridges, silo and hopper weighing, process weighing and weighing equipment.
Technical Parameter:

Rated Load:	10/20/25/30/40/50 /60/100t
Sensitivity:	(2.0±0.1%) m V/V
Combined Error:	±0.02% F.S
Creep Error（30min）:	±0.02% F.S
Zero Balance:	±1% F.S
Temp. Effect On Zero:	±0.02% F.S/10℃
Temp. Effect On Span:	±0.02% F.S/10℃
Input Resistance:	750±5Ω
Output Resistance:	702±2Ω
Insulation Resistance:	≥5000MΩ
Operating Temperature Range:	-30~+70℃
Maximum Safe Over Load:	150%F.S
Ultimate Over Load:	300%F.S
Recommend Excitation Voltage:	10~12V DC
Maximum Excitation Voltage:	15V DC
Sealing Class:	IP67/IP68
Element Material:	-A: Alloy Steel, -SS: Stainless Steel
Cable:	Length=13m(10~30t) ,16m(50~60t), 18m(100t)
Citation:	GB/T7551-2008/ OIML R60
Mode Of Connection:	Red(Input+),Black(Input-),Green(Output+),White(Output-)
