Compression Column Load Cell

LL410

Compression Load Cell / Column Load Cell

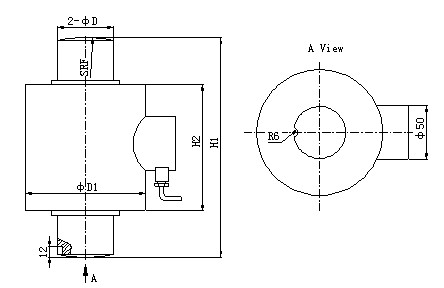

Dimensions:

Unit: mm

Cap/Size	D	D1	H1	H2	F
10~40t	44	76	130	80	200
50~60t	44	76	210	92	300
100t	64	103	260	121	400

Product Characteristics:

Compression load cell / column load cell LL410 load cells are available in the capacities 10t to 100t . OIML approved load cells for trade approved applications. We can produce the load cell with analog load cells, digital load cells, wireless load cells, stainless steel load cells, alloy steel load cell, high temperature load cell, anti-lighting load cell. They offer electronic hermetic sealing, oil proof, waterproof, anti-corrosive gas and medium making them lightening protection in all kinds of environments. They are suitable scale and other electronic weighing devices, truck weigh scales, electronic truck scale, digital truck scale, axle scale, digital railway scale, construction truck weighing scale, weighbridge, weighing systems, tank and hopper weighing.

Technical Parameter:

Rated Load:	10/20/30/40/50/60/100t
Sensitivity:	(2.0±0.1%) mV/V
Combined Error:	±0.03% F.S
Creep Error（30min）:	±0.03% F.S
Zero Balance：	±1% F.S
Temp. Effect On Zero:	±0.02% F.S/10℃
Temp. Effect On Span:	±0.02% F.S/10℃
Input Resistance:	750±5Ω
Output Resistance:	703±2Ω
Insulation Resistance:	≥5000MΩ
Operating TemperatureRange:	-30~+70℃
Maximum Safe Over Load:	150%F.S
Ultimate Over Load:	200%F.S
Recommend Excitation Voltage:	10~12V DC
Maximum Excitation Voltage:	15V DC
Sealing Class:	IP67/ IP68
Element Material:	Alloy Steel, Stainless steel
Cable:	Length=16m(10,25,40t), 20m(60,100t)
Citation:	GB/T7551-2008/ OIML R60
Mode Of Connection：	Red(Input+),Black(Input-),Green(Output+),White(Output-)t-)
