Compression Column Load Cell

LL408

Compression Load Cell / Column Load Cell

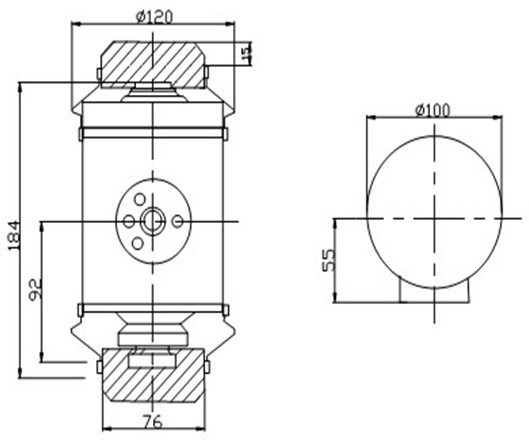

Dimensions:

Product Characteristics:

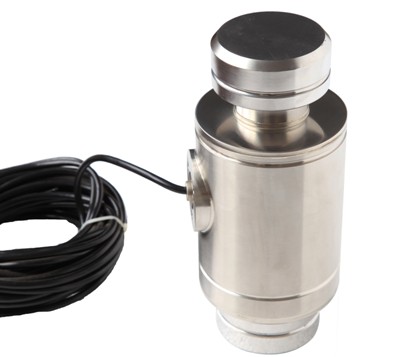

Compression load cell / column load cell LL408 is a hermetically sealed load bearing unit operating in compression to produce an analogue output which is proportional to the applied load. OIML approved load cells for trade approved applications. We can produce the load cell with analog load cells, digital load cells, wireless load cells, stainless steel load cells, alloy steel load cell, high temperature load cell, anti-lighting load cell. This transducer is designed to operate with loads applied through the central axis of the cell. For high accuracy weighing applications the load cell is protected from side forces and or off center loads by mounting it as a double pendle (strut)unit. Tie bars or bumper stops will be required to restrict horizontal movement of the load platform. The cell can be mounted either way up.
Technical Parameter：

Rated Load:	23t/45t
Sensitivity:	(2.0±0.1%) m V/V
Combined Error:	±0.03% F.S
Creep Error（30min）:	±0.01% F.S
Zero Balance:	±1% F.S
Temp. Effect On Zero:	±0.02% F.S/10℃
Temp. Effect On Span:	±0.02% F.S/10℃
Input Resistance:	750±5Ω
Output Resistance:	702±2Ω
Insulation Resistance:	≥5000MΩ
Operating Temp. Range:	-30~+70℃
Maximum Safe Over Load:	150%F.S
Ultimate Over Load:	200%F.S
Recommend Excitation:	10~12V DC
Maximum Excitation:	15V DC
Sealing Class:	IP67/IP68
Element Material:	-A: Alloy Steel, -SS: Stainless Steel
Cable:	Length=13m
Citation:	GB/T7551-2008/ OIML R60
Mode Of Connection:	Red(Input+),Black(Input-),Green(Output+),White(Output-)t-)
