Compression Sensor

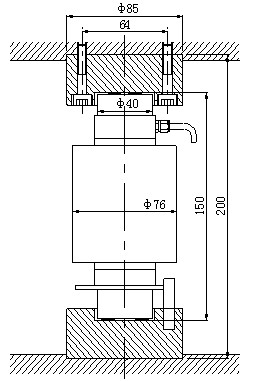

Dimensions:
Product Characteristics:

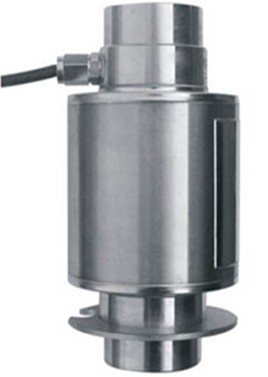

Compression sensor LL409 the type is a stainless steel or alloy steel self centering rocker column load cell with complete hermetic sealing. OIML approved load cells for trade approved applications. We can produce the load cell with analog load cells, digital load cells, wireless load cells, stainless steel load cells, alloy steel load cell, high temperature load cell, anti-lighting load cell. It easy to install and maintain to provide real cost advantages for both new installations and retrofit projects. It is a perfect fit for use in harsh industrial environments. Application in weighbridges, hoppers, tanks and silos, construction truck weighing scale, weighbridge, weighing systems, tank and hopper weighing and vehicle scales.
Technical Parameter:
Rated Load: |
10/15/20/30/40/50t |
| Sensitivity: | (2.0±0.1%) mV/V |
| Combined Error: | ±0.03% F.S |
| Creep Error（30min） | ±0.02% F.S |
| Zero Balance | ±1% F.S |
| Temp. Effect On Zero: | ±0.017% F.S/10℃ |
| Temp. Effect On Span: | ±0.017% F.S/10℃ |
| Input Resistance: | 750±5Ω |
| Output Resistance: | 702±2Ω |
| Insulation Resistance: | ≥5000MΩ |
| Operating Tem. Range: | -30~+70℃ |
| Maximum Safe Over Load: | 150%F.S |
| Ultimate Over Load: | 250%F.S |
| Recommend Excitation: | 10~12V DC |
| Maximum Excitation: | 15V DC |
| Sealing Class: | IP67/IP68 |
| Element Material: | -A: Alloy Steel, -SS: Stainless Steel |
| Cable: | Length=12m |
| Citation: | GB/T7551-2008/ OIML R60 |
| Mode Of Connection: | Red(Input+),Black(Input-),Green(Output+),White(Output-) |
