Compression Sensors

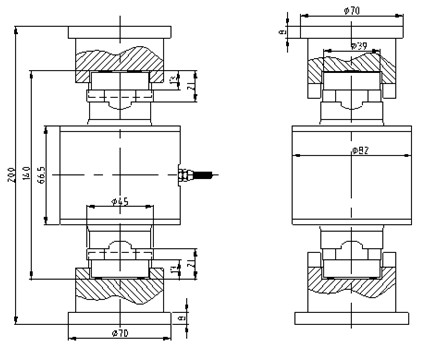

Dimensions Unit: mm:
Product characteristics:
Compression sensors column load cell LL407-MA load cell is the best technological solution for weighbridge weighing. Compression load cell made of stainless steel. IP68 protection. OIML approved load cells for trade approved applications. We can produce the load cell with analog load cells, digital load cells, wireless load cells, stainless steel load cells, alloy steel load cell, high temperature load cell, anti-lighting load cell. Inbuilt over voltage protection. Spherical and self centering base load cell. They offer electronic hermetic sealing, oil proof, waterproof, anti-corrosive gas and medium them lightening protection in all kinds of environments, weighing Scale, weighing equipment, weighing, truck weigh scale, truck weigh scales, digital truck scale, axle scale, digital railway scale.
Technical Parameter:
| Rated Load: | 15/30/50t |
| Sensitivity: | (2.0±0.1%) m V/V |
| Combined Error: | ±0.02% F.S |
| Creep Error(30min): | ±0.02% F.S |
| Zero Balance: | ±1% F.S |
| Tco: | ±0.02% F.S/10℃ |
| Tc Span: | ±0.02% F.S/10℃ |
| Input Resistance: | 450±5Ω |
| Output Resistance: | 481±2Ω |
| Insulation Resistance: | ≥5000MΩ |
| Operating Temp. Range: | -30~+70℃ |
| Maximum Safe Over Load: | 150%F.S |
| Ultimate Over Load: | 250%F.S |
| Recommend Excitation: | 10~12V DC |
| Maximum Excitation: | 15V DC |
| Sealing Class: | IP67/IP68 |
| Element Material: | -A: Alloy Steel, -SS: Stainless Steel |
| Cable: | Length=15m |
| Citation: | GB/T7551-2008/ OIML R60 |
| Mode Of Connection: | Red(Input+),Black(Input-),Green(Output+),White(Output-) |
