Crane Scale

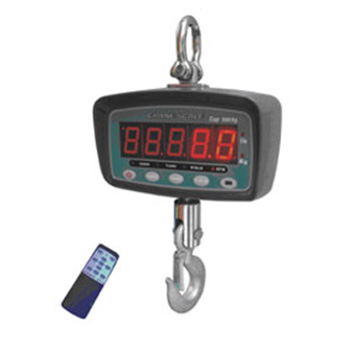

HM series crane scale

♦ Multi-weighing units:
Kg, lb, N are selectable, generally kg is the default unit.
♦ Multi-function operation:
Tare；Zero；Auto zero tracking；Total；Hold; Overload warning,operation through remote controller functions.
♦ User-friendly design:
Cast aluminium housing and aluminium front panel for maximum protection; Large red 5 digit LED display (digit height: 30mm); Safety factor up to 4 times capacity; Battery Operated with low battery indication; Automatic switch-off power-saving function.

Standard	OIML class III
Display	30mm (1.2’’) 5digits LCD/LED
Zero Range	4% F.S.
Tare Range	100% F.S.
Stable Time	≤10seconds
Overload Indication	100% F.S. + 9e
Max. Safety Load	125% F.S.
Ultimate Load	400% F.S.
Battery Life	≥50 hours
Battery Type	Fully sealed Lead-Acid battery, 6V/5Ah
Adapter	DC9V/1000mA
Operating Humidity	≤85% RH under 20℃
Remote Controller Distance	Min. 15m
Battery of Remote Controller	AAA battery, 1.5V×2
Operating Temp	- 10℃ ~ + 40℃

MODEL	Max. capacity(kg)	Min. weigh(kg)	Division(kg)	Total dispay counts(n)
HM-005	50	0.4	0.02	2500
HM -01	100	1	0.05	2000
HM -02	200	2	0.1	2000
HM -03	300	2	0.1	3000
HM -05	500	4	0.2	2500
HM -1	1000	10	0.5	2000

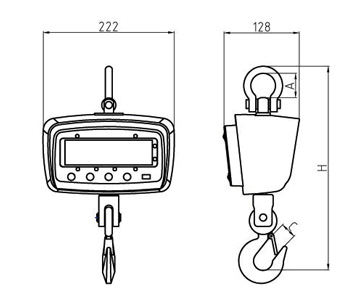

MODEL	A(mm)	C(mm)	H(mm)	N.W.(kg)
HM -005	33	24	320	4
HM -01	33	24	320	4
HM -02	33	24	320	4
HM -03	33	24	320	4
HM -05	41	25	345	4.2
HM -1	41	25	345	4.2
