Crane Scale

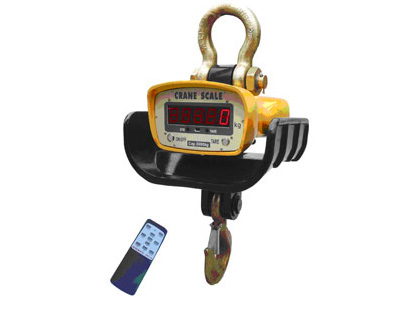

HG series high-temperature proof crane scale

◆ Special design:
Used under high temperature environment. Especially in casting industry.
◆ Multi-weighing units:
Kg, lb, N are selectable, generally kg is the default unit.
◆ Multi-function operation:
Tare；Zero；Auto zero tracking；Total；Hold; Overload warning and record, Calibration through remote controller ,etc functions.

Features:

Min distance between scale and high temperature
1000℃	1200℃	1400℃	1600℃
1.6m	1.8m	2m	2.2m

Main technical data:

Min distance between scale and high temperature
1000℃	1200℃		1400℃	1600℃
1.6m	1.8m		2m	2.2m
Standard		According to OIML class III
Display		30mm (1.2’’) 5digits LCD/LED
Zero Range		4% F.S.
Tare Range		100% F.S.
Stable Time		≤10seconds
Overload Indication		100% F.S. + 9e
Max. Safety Load		150% F.S.
Max. Safety Load		150% F.S.
Ultimate Load		700% F.S.
Battery Life		≥70 hours
Battery Type		Fully sealed Lead-Acid battery, 6V/7Ah
Adapter		DC9V/1000mA
Operating Humidity		≤85% RH under 20℃
Remote Controller Distance		Min. 15m
Battery of Remote Controller		AAA battery, 1.5V×2

Specifications:

Min distance between scale and high temperature
1000℃	1200℃		1400℃	1600℃
1.6m	1.8m		2m	2.2m
Standard		According to OIML class III
Display		30mm (1.2’’) 5digits LCD/LED
Zero Range		4% F.S.
Tare Range		100% F.S.
Stable Time		≤10seconds
Overload Indication		100% F.S. + 9e
Max. Safety Load		150% F.S.
Max. Safety Load		150% F.S.
Ultimate Load		700% F.S.
Battery Life		≥70 hours
Battery Type		Fully sealed Lead-Acid battery, 6V/7Ah
Adapter		DC9V/1000mA
Operating Humidity		≤85% RH under 20℃
Remote Controller Distance		Min. 15m
Battery of Remote Controller		AAA battery, 1.5V×2

MODEL	Max. capacity(kg)	Min. weigh(kg)	Division(kg)	Total dispay counts (n)
HG-1	1000	10	0.5	2000
HG -2	2000	20	1	2000
HG -3	3000	20	1	2000
HG -5	5000	40	2	2500
HG -10	10000	100	5	2000
HG -15

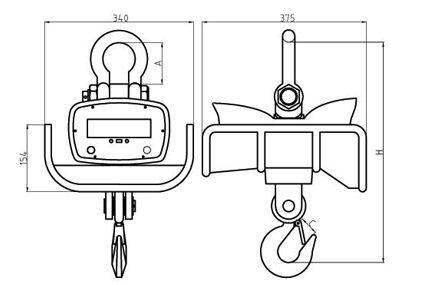

MODEL	A(mm)	C(mm)	H(mm)	N.W.(kg)
HG -1	67	33	450	18.5
HG -2	95	40	510	22
HG -3	113	50	625	31
HG -5	122	60	710	43
HG -10	144	70	835	60
HG -15	166	85	900	73
