Crane Scale

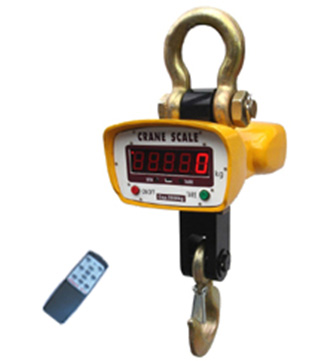

HA series crane scale

◆ Multi-weighing units:
Kg, lb, N are selectable, generally kg is the default unit.
◆ Multi-function operation:
Tare；Zero；Auto zero tracking；Total；Hold; Overload warning and record, operate through remote controller,etc functions.
◆ User-friendly design:
Cast aluminium housing for maximum protection; Large red 5 digit LED display (digit height 30mm); Battery Operated with low battery indication; Automatic turn off , power-saving function.
◆ Multi-weighing units:
Kg, lb, N are selectable, generally kg is the default unit.
◆ Multi-function operation:
Tare；Zero；Auto zero tracking；Total；Hold; Overload warning and record, operate through remote controller,etc functions.
◆ User-friendly design:
Cast aluminium housing for maximum protection; Large red 5 digit LED display (digit height 30mm); Battery Operated with low battery indication; Automatic turn off , power-saving function.

Standard	According to OIML class III
Display	30mm (1.2’’) 5digits LCD/LED
Zero Range	4% F.S.
Tare Range	100% F.S.
Stable Time	≤10seconds
Overload Indication	≤10seconds
Overload Indication	100% F.S. + 9e
Max. Safety Load	125% F.S.
Ultimate Load	400% F.S.
Battery Life	≥70 hours
Battery Type	Fully sealed Lead-Acid battery, 6V/7Ah
Adapter	DC9V/1000mA
Operating Temp.	- 10℃ ~ + 40℃
Operating Humidity	≤85% RH under 20℃
Remote Controller Distance	Min. 15m
Battery of Remote Controller	AAA battery, 1.5V×2

MODEL	Max. capacity(kg)	Min. weigh(kg)	Division(kg)	Total dispay counts (n)
HA-1	1000	10	0.5	2000
HA -2	2000	20	1	2000
HA -3	3000	20	1	3000
HA -5	5000	40	2	2500
HA -10	10000	100	5	2000
HA -15	15000	100	5	3000
HA -20	20000	200	10	2000

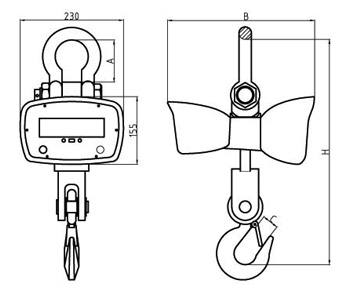

MODEL	A(mm)	B(mm)	C(mm)	H(mm)	N.W.(kg)
HA-1	67	350	33	450	13.5
HA -2	67	350	33	450	13.5
HA -3	95	350	40	510	17
HA -5	113	365	50	625	26
HA -10	122	365	60	760	40
HA -15	144	365	70	835	55
HA -20	166	365	85	900	68
