Crane Scale

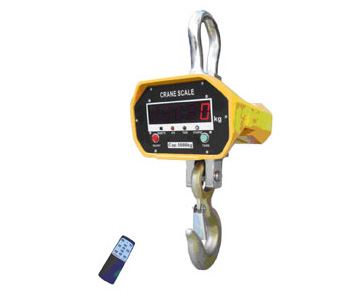

HS series crane scale

♦ Multi-weighing units:
Kg, lb, N are selectable, generally kg is the default unit.
♦ Multi-function operation:
Tare；Zero；Auto zero tracking；Total；Hold; Overload warning and record, operate through remote controller ,etc functions.
♦ User-friendly design:
Cast aluminium housing for maximum protection; Large red 5 digit LED display (digit height 30mm); Battery Operated with low battery indication; Automatic turn off , power-saving function.
♦ Multi-weighing units:
Kg, lb, N are selectable, generally kg is the default unit.
♦ Multi-function operation:
Tare；Zero；Auto zero tracking；Total；Hold; Overload warning and record, operate through remote controller ,etc functions.
♦ User-friendly design:
Cast aluminium housing for maximum protection; Large red 5 digit LED display (digit height 30mm); Battery Operated with low battery indication; Automatic turn off , power-saving function.

Specification:

Standard		According to OIML class III
Display		30mm (1.2’’) 5digits LCD/LED
Zero Range		4% F.S.
Tare Range		100% F.S.
Stable Time		≤10seconds
Overload Indication		100% F.S. + 9e
Max. Safety Load		125% F.S.
Ultimate Load		400% F.S.
Battery Life		≥50 hours
Battery Type		Fully sealed Lead-Acid battery, 6V/4.5Ah
Adapter		DC9V/1000mA
Operating Humidity		≤85% RH under 20℃
Remote Controller Distance		Min. 15m
Battery of Remote Controller		AAA battery, 1.5V×2

MODEL	Max. capacity(kg)	Min. weigh(kg)	Division(kg)	Total dispay counts(n)
HS-2	2000	20	1	2000
HS-3	3000	20	1	3000
HS -5	5000	40	2	2500
HS -10	10000	100	5	3000
HS -15	15000	200	5	3000
HS -20	20000	200	10	2000

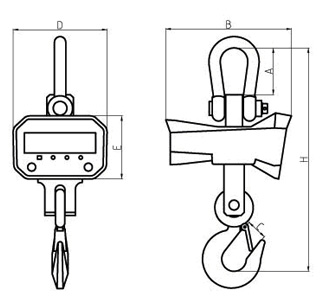

Main technical data

MODEL	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	H(mm)	N.W.(kg)
HS -2	95	260	33	195	135	430	10.5
HS -3	95	260	40	195	135	455	11.5
HS -5	120	325	50	240	165	535	17.5
HS -10	124	325	60	240	165	660	27.5
HS -15	225	345	70	240	165	855	49
HS -20	225	345	85	240	165	920	56
