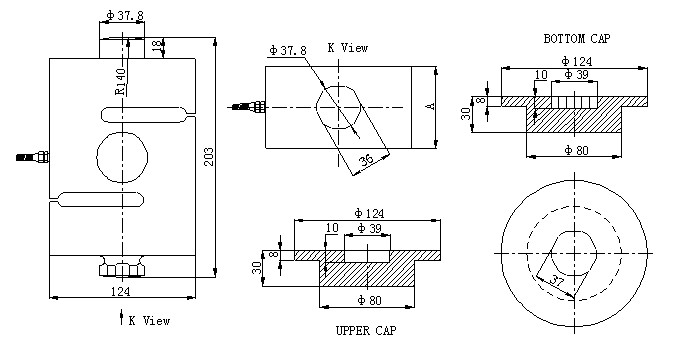

Dimensions:
Unit: mm
| Cap/Size | A |
| 10~20t | 70 |
| 30t | 80 |
Technical Parameter:
| Rated Load: | 10/20/30t |
| Sensitivity: | (2.0±0.1%) mV/V |
| Combined Error: | ±0.05% F.S |
| Creep Error（30min）: | ±0.05% F.S |
| Zero Balance | ±1% F.S |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ |
| Temp. Effect On Span: | ±0.02% F.S/10℃ |
| Input Resistance: | 750±5Ω |
| Output Resistance: | 701±2Ω |
| Insulation Resistance: | ≥5000MΩ |
| Operating Temp.Range: | -30~+70℃ |
| Maximum Safe Over Load: | 150%F.S |
| Ultimate Over Load: | 250%F.S |
| Recommend Excitation Vol.: | 10~12V DC |
| Maximum Excitation Vol.: | 15V DC |
| Sealing Class: | IP67 |
| Element Material: | Alloy Steel, Stainless Steel |
| Cable: | Length=L:13m |
| Citation: | GB/T7551-2008/ OIML R60 |
| Mode Of Connection: | Red(Input+),Black(Input-),Green(Output+),White(Output-) |
