Wireless Load Cell

LL348W

Wireless Load Cell

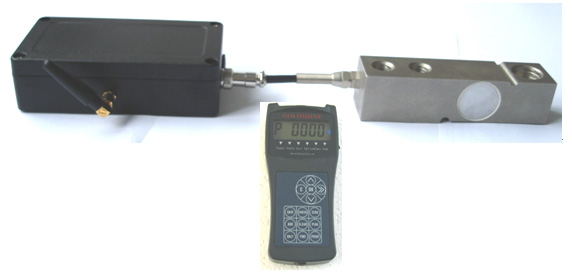

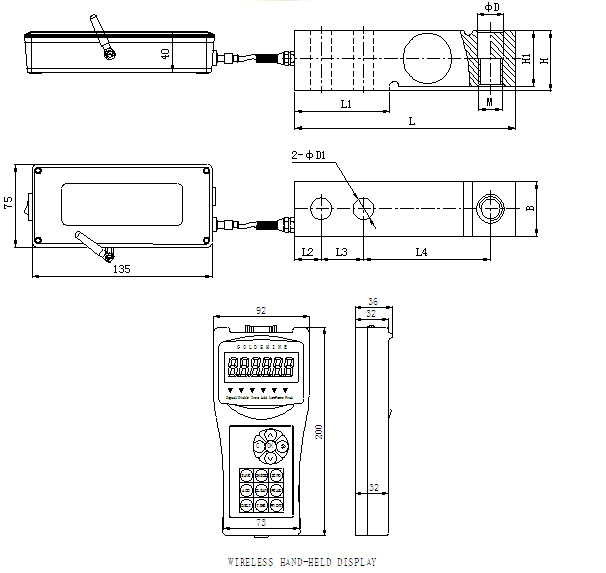

Dimension:

Unit:mm

Cap./ Size	L	L1	L2	L3	L4	B/H1	H	D1	ΦD	M
0.1~0.5t	130	54	12.7	25.4	76.2	32	34	12.8	13.5	M12
1~3t	130	54	12.7	25.4	76.2	32	34	12.8	13.5	M16
3~5t	171.5	77	19.1	38.1	95.3	38	40	20	20	M18x1.5
7.5~10t	223	100	25	50.8	120	50.8	54.8	27	25	M24x2

Product Characteristics:

SQB series is single shear beam. One end of the load cell is fixed, another loaded and rocker pressure head transfers force. Easy installation and it is suitable for floor scale, automobile test facilities, hopper scale and other electronic weighing devices.

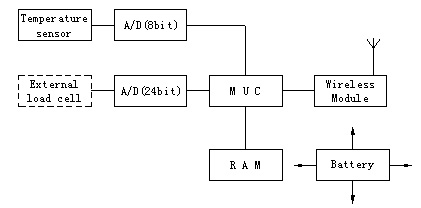

Circuit Diagram

Notice:

Do not use the wireless load cell in explosive and unsafe place. The wireless range will be effective when in different weather, the load cell with the indicator in different place, orientation or obstruct from .For charge :according to Li-ion battery. Do not excess discharge.

Technical Parameter:

Rated Load:	0.1/0.2/0.25/0.3/0.5/1/1.5/2/2.5/3/5/7.5/10t
Wireless Frequency:	240GHz
Wireless Distance:	Min：80m（default）[200m（optional）]
A/D Conversion Rate:	≥50 times/seconds
Battery Life:	≥50 hours
Sensitivity:	(2.0±0.1%) m V/V
Combined Error:	±0.02% F.S
Creep Error（30min）:	±0.02% F.S
Zero Balance:	±1% F.S
Temp. Effect On Zero:	±0.02% F.S/10℃
Temp. Effect On Span:	±0.02% F.S/10℃
Input Resistance:	385±5Ω
Output Resistance:	351±2Ω
Insulation Resistance:	≥5000MΩ
Operating Temp. Range	-30~+70℃
Maximum Safe Over Load:	120%F.S
Ultimate Over Load:	200%F.S
Recommend Excitation:	10~12V DC
Maximum Excitation:	15V DC
Sealing Class:	IP67/IP68
Element Material:	Alloy Steel, Stainless Steel
Citation:	GB/T7551-2008/ OIML R60
Mode Of Connection:	Red(Input+),Black(Input-),Green(Output+),White(Output-)
