(For LL348 0.5~3t )

(For LL348-5t )

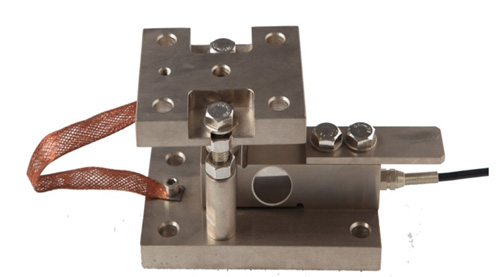

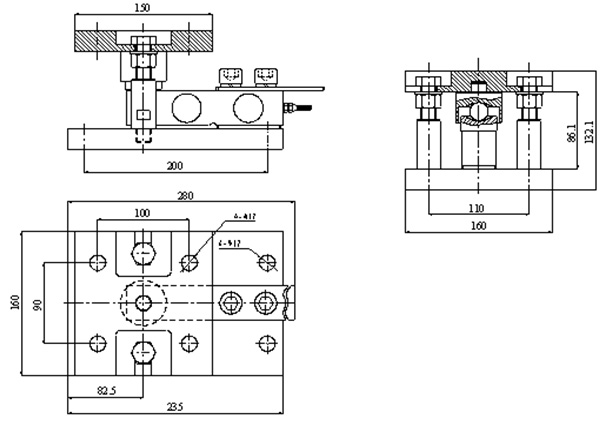

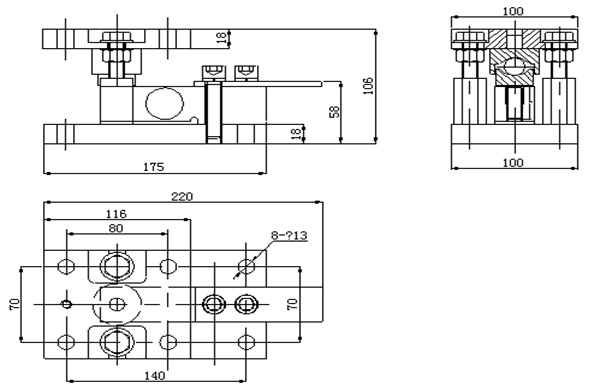

LL348 series is single shear beam. One end of the load cell is fixed, another loaded and rocker pressure head transfers force. Easy installation and it is suitable for floor scale, automobile test facilities, hopper scale and other electronic weighing devices.

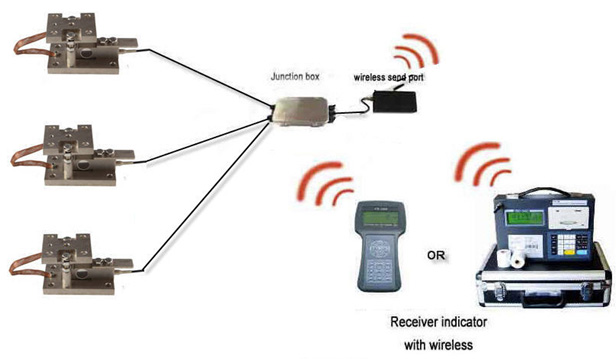

 Do not use the wireless load cell in explosive and unsafe place. The wireless range will be effective when in different weather, the load cell with the indicator in different place, orientation or obstruct from .For charge :according to Li-ion battery. Do not excess discharge.

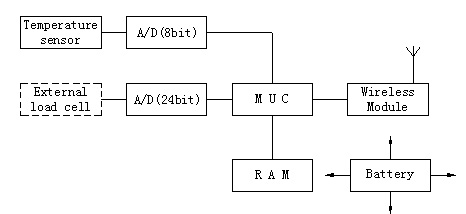

    The load cell’s out–put signal is digital, parameter adjustment and temperature compensation will be finished in internal. Though 470MHz wireless module to launch after reasonable.

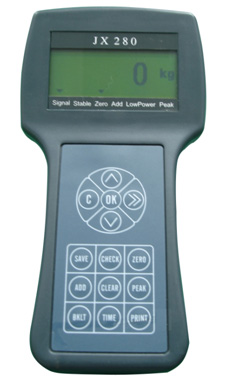

    Handheld receive load cell output and its internal battery power consumption values then show them on the LCD display ,and handheld through RS232 output to computer or large-screen display.

▲Display: LCD 71×29 with backlighting , 6 bit show weight value

▲Hold on the peak value, can contact with computer or large-screen display by RS232

▲Unit：kg、lb、t

  Do not use the wireless load cell in explosive and unsafe place. The wireless range will be effective when in different weather, the load cell with the indicator in different place, orientation or obstruct from .For charge: according to Li-ion battery. Do not excess discharge.

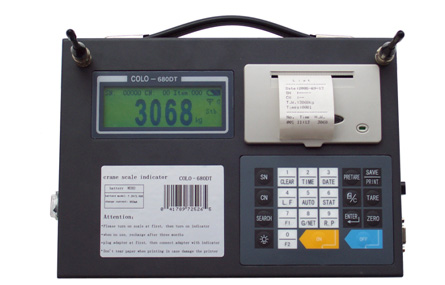

● Adopts ∑-Δ A/D conversion technology.
● Keyboard calibration, easy to operate.
● Able to setup zero(auto/manual) range.
● Weighing data save protection in case of power off.
● Battery charger with several protection modes to extend life of rechargeable battery.
● Standard RS232 communication interface(optional).
● Portable design, packed in portable box, easy to operate outdoor.
● Adopt SMT technology, reliable and high quality.
● LCD display with dot character with backlight, readable in aphotic areas.
● Gathering up to data records of 2000 weighings, records can be sorted, searched and printed.
● Standard parallel print interface(EPSON printer)
● With rechargeable 7.2V/2.8AH battery for indicator, no memory. Scale body with power supply of DC 6V/4AH battery.
● Power saving mode, indicator will turn off automatically after 30minutes with no operation.

  Do not use the wireless load cell in explosive and unsafe place. The wireless range will be effective when in different weather, the load cell with the indicator in different place, orientation or obstruct from .For charge: according to Li-ion battery. Do not excess discharge.

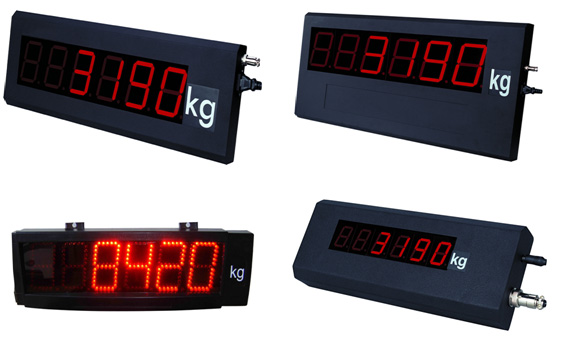

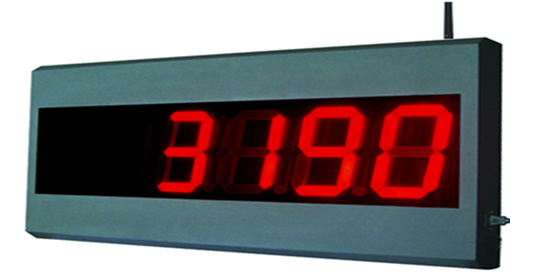

Weighing the results of long-range wireless observation, weighing device can be used as the auxiliary display.
Connection with the weighing indicator, as a system of auxiliary displays. (weighing indicator should be equipped with the appropriate means of communication.)
Dynamic scan latch technology
High brightness digital model, a special optical filter film, Perspective range;
Display system or the output of the gross, net; Display the gross weight and net weight of  system or indicator output.

Power Supply: AC 187 ~ 242V; 49 ~ 51Hz;
Ambient temperature: 0 ~ 40 ℃;
Ambient Humidity: ≤ 85% RH;
Radio Frequency: 240HZ
Wireless transmission distance: Min: 80 meters [200 meters (optional)]
Display Character And Specifications:
6-bit digital tube LED character height 25mm (1 inch)
6-bit digital tube LED character height 75mm (3 inches)
6-bit digital tube LED character height 125mm (5 inch)
6-bit digital tube LED character height 200mm (8 inches)
