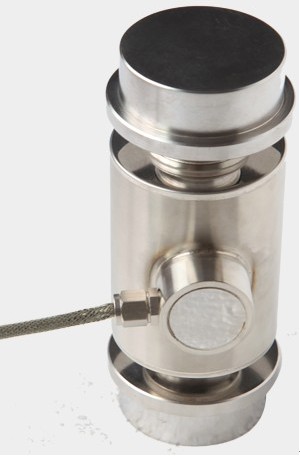

Canister & Disk Load Cell

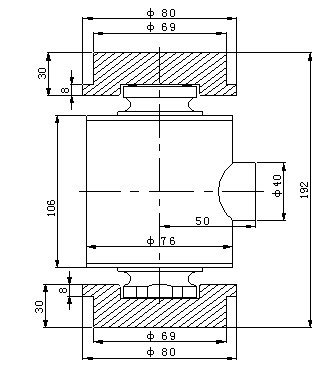

Dimensions:
Product Characteristics:
Canister & disk load cell LL406-MA is a multi-column, compression load cell. OIML approved load cells for trade approved applications. We can produce the load cell with analog load cells, digital load cells, wireless load cells, stainless steel load cells, alloy steel load cell, high temperature load cell, anti-lighting load cell. The fully leak-tested welded construction, advanced cable entry and built-in surge protection tubes ensure that this product can be used successfully in harsh environments. The load cell applications truck and rail weighbridges, silo and hopper weighing, process weighing and weighing equipment, digital truck scale, axle scale, digital railway scale, explosion-proof truck scale, fully automatic truck scale, car scale, construction truck weighing scale.
Technical Parameter:
| Rated Load: | 20/30/50t |
| Sensitivity: | (2.0±0.1%) m V/V |
| Combined Error: | ±0.05% F.S |
| Creep Error（30min）: | ±0.02% F.S |
| Zero Balance: | ±1% F.S |
| Tco: | ±0.02% F.S/10℃ |
| Tc Span: | ±0.02% F.S/10℃ |
| Input Resistance: | 750±5Ω |
| Output Resistance: | 701±2Ω |
| Insulation Resistance: | ≥5000MΩ |
| Operating Temp. Range: | -30~+70℃ |
| Maximum Safe Over Load: | 150%F.S |
| Ultimate Over Load: | 250%F.S |
| Recommend Excitation: | 10~12V DC |
| Maximum Excitation: | 15V DC |
| Sealing Class: | IP67/IP68 |
| Element Material: | -A: Alloy Steel, -SS: Stainless Steel |
| Cable: | Length=16m(10,25,40t), 20m(60,100t) |
| Citation: | GB/T7551-2008/ OIML R60 |
| Mode Of Connection: | Red(Input+),Black(Input-),Green(Output+),White(Output-) |
