Compression Column Load Cell

LL406-M

Load Cell For Heavy-Capacity Tanks

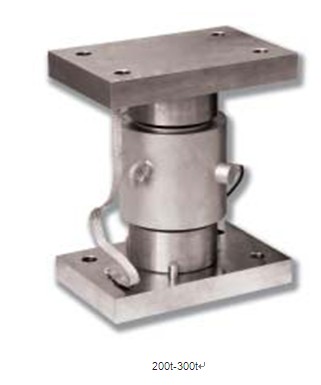

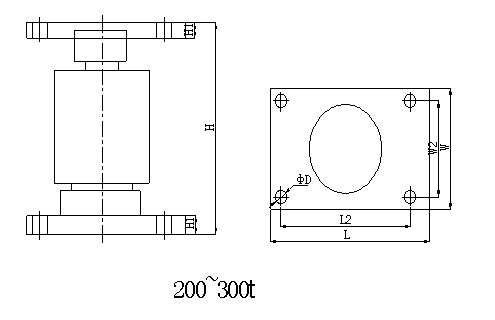

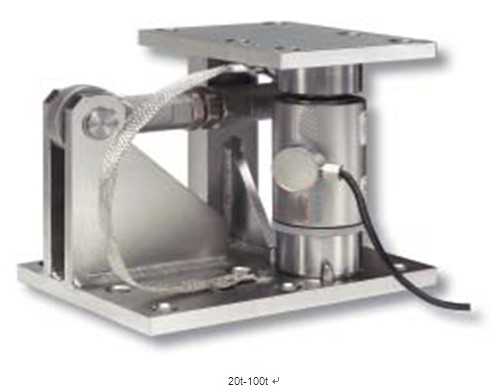

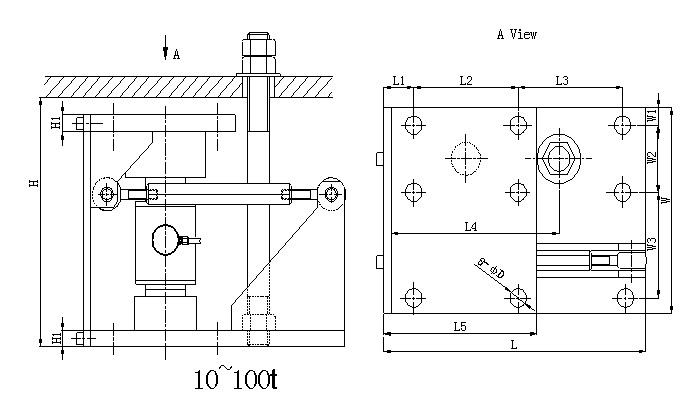

Dimensions:

Unit: mm

Cap/t	D	H	H1	L	L1	L2	L3	L4	L5	W	W1	W2	W3
10-60t	18	222.5	15	280	25	115	115	185	160	200	17.5	65	102.5
100t	22	300	30	420	35	230	120	330	300	400	35	165	165
200t	24	355	40	220	17.5	185				180	22.5	135
300t	30	465	50	360	35	290				230	35	160

Product Characteristics:
The LL406-M have a rocker column design that automatically aligns load forces for accurate weighing, is a column, low profile, compression load cell. Because there are no bolted connections, the load cells are easy to inspect or replace. The construction offers excellent insensitivity to eccentric loads whilst maintaining accuracy. This product is suitable for use in road and rail weighbridges and process weighing applications. This product meets the stringent weights and measures requirements. The load cell applications truck and rail weighbridges, silo and hopper weighing, process weighing and weighing equipment.
Technical Parameter:

Rated Load:	10/20/25/30/40/50 /60/100/200/300t
Sensitivity:	(2.0±0.1%) m V/V
Combined Error:	±0.02% F.S
Creep Error（30min）:	±0.02% F.S
Zero Balance:	±1% F.S
Temp. Effect On Zero:	±0.02% F.S/10℃
Temp. Effect On Span:	±0.02% F.S/10℃
Input Resistance:	750±5Ω
Output Resistance:	702±2Ω
Insulation Resistance:	≥5000MΩ
Operating Temperature Range:	-30~+70℃
Maximum Safe Over Load:	150%F.S
Ultimate Over Load:	300%F.S
Recommend Excitation Voltage:	10~12V DC
Maximum Excitation Voltage:	15V DC
Sealing Class:	IP67/IP68
Element Material:	-A: Alloy Steel, -SS: Stainless Steel
Cable:	Length=13m(10~30t) ,16m(50~60t), 18m(100~300t)
Citation:	GB/T7551-2008/ OIML R60
Mode Of Connection:	Red(Input+),Black(Input-),Green(Output+),White(Output-)
