Compression Column Load Cell

LL406-0782

Canister & Disk Load Cell

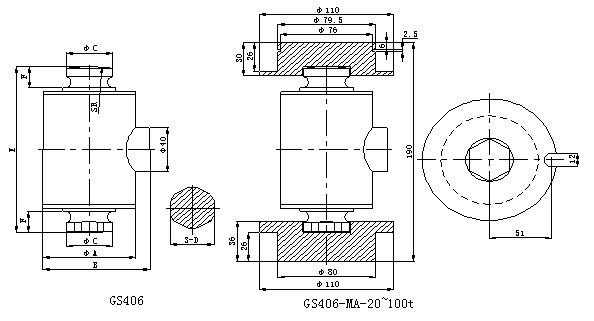

Dimensions:
Note: 200~300t does not offer receiversfer

Unit: mm

Cap/Size	A	B	C	D	E	F	SR
20~40t	76	102	37.8	35.5	150	19	160
50～60t	76	102	37.8	35.5	150	19	305
100～120t	102	122	53.8	50.6	150	19	305
200～250t	159	179	80	75.3	195	25	400
300t	192	218	106	99.2	250	29	900

Product Characteristics:

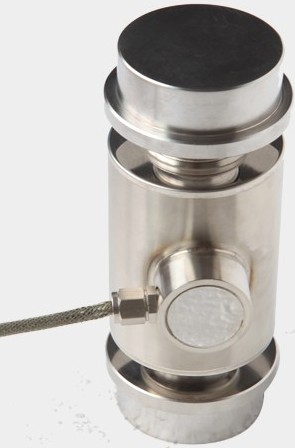

Canister & disk load cell LL406 is a multi-column, compression load cell. OIML approved load cells for trade approved applications. We can produce the load cell with analog load cells, digital load cells, wireless load cells, stainless steel load cells, alloy steel load cell, high temperature load cell, anti-lighting load cell. The fully leak-tested welded construction, advanced cable entry and built-in surge protection tubes ensure that this product can be used successfully in harsh environments. The load cell applications truck and rail weighbridges, silo and hopper weighing, process weighing and weighing equipment, digital truck scale, axle scale, digital railway scale, explosion-proof truck scale, fully automatic truck scale, car scale, construction truck weighing scale.
Technical Parameter:

Rated Load:	20/30/40/50/60/100/120/200/250/300t
Sensitivity:	(2.0±0.1%) m V/V
Combined Error:	±0.03% F.S
Creep Error（30min）:	±0.02% F.S
Zero Balance:	±1% F.S
Tco:	±0.02% F.S/10℃
Tc Span:	±0.02% F.S/10℃
Input Resistance:	1160±10Ω
Output Resistance:	1000±3Ω
Insulation Resistance:	≥5000MΩ
Operating Temp. Range:	-30~+70℃
Maximum Safe Over Load:	150%F.S
Ultimate Over Load:	250%F.S
Recommend Excitation:	10~12V DC
Maximum Excitation:	15V DC
Sealing Class:	IP67/IP68
Element Material:	-A: Alloy Steel, -SS: Stainless Steel
Cable:	Length=12m(20,30,40t), 16m(50,100t), 18(20~300t)
Citation:	GB/T7551-2008/ OIML R60
Mode Of Connection:	Red(Input+),Black(Input-),Green(Output+),White(Output-)
