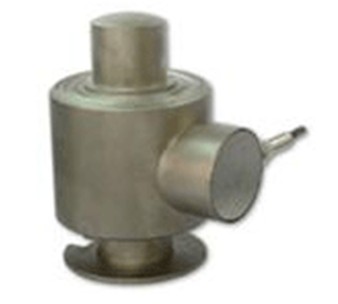

Compression Column Load Cell

LL405

Compression Load cell/ Canister & Disk Load Cell

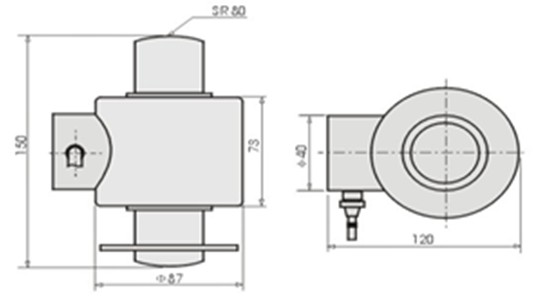

Dimension:

Product Characteristics:
Compression load cell/ canister & disk load cell LL405 compression load cell. This product of the most successful compression cells ever produced and is suitable for use in road and rail weighbridges and process weighing applications. OIML approved load cells for trade approved applications. We can produce the load cell with analog load cells, digital load cells, wireless load cells, stainless steel load cells, alloy steel load cell, high temperature load cell, anti-lighting load cell. The fully leak-tested welded construction, built-in surge protection tubes ensure that this product can be used successfully in harsh environments. The load cell applications truck weighbridges, silo and hopper weighing, process weighing and weighing equipment, weighing systems, tank and hopper weighing and vehicle scales.
Technical parameter:

Rated Load:	20t
Sensitivity:	(2.0±0.1%) mV/V
Combined Error:	±0.05% F.S
Creep Error（30min）:	±0.02% F.S
Zero Balance:	±1% F.S
Tco:	±0.02% F.S/10℃
Tc Span:	±0.02% F.S/10℃
Input Resistance:	750±5Ω
Output Resistance:	701±2Ω
Insulation Resistance:	≥5000MΩ
Operating Temp. Range:	-30~+70℃
Maximum Safe Over Load:	150%F.S
Ultimate Over Load:	250%F.S
Recommend Excitation:	10~12V DC
Maximum Excitation:	15V DC
Sealing Class:	IP67/IP68
Element Material:	-A: Alloy Steel, -SS: Stainless Steel
Cable:	Length=16m(10,25,40t), 20m(60,100t)
Citation:	GB/T7551-2008/ OIML R60
Mode Of Connection:	Red(Input+),Black(Input-),Green(Output+),White(Output-)
