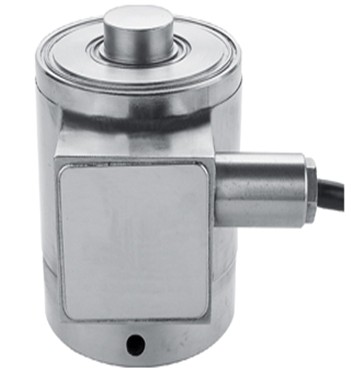

Compression Column Load Cell

LL403

LL403 Weighing Sensors

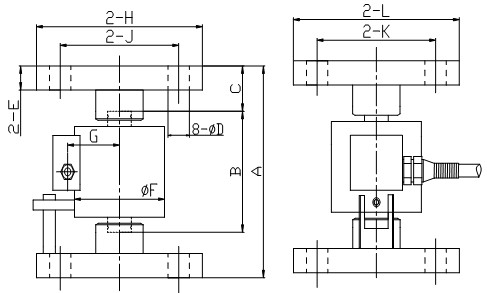

Dimensions Unit: mm

Cap./Size	A	B	C	D	E	F	G	H	J	K	L
10t	170	110	30	18	16	80	62.5	140	100	80	130
20t	175	115	30	18	19	90	69.5	140	100	80	130
30t	205	125	40	22	22	100	76	190	130	110	170
50t	255	155	50	22	25	125	88.8	200	140	120	180
100/150t	340	200	70	26	32	165	111.8	240	160	160	230

Product Characteristics:

Weighing sensors LL403 load cells are available in the capacities 10~150t. We can produce the load cell with analog load cells, digital load cells, wireless load cells, stainless steel load cells, alloy steel load cell, high temperature load cell, anti-lighting load cell. They offer alloy steel or stainless steel construction, electronic hermetic sealing, oil proof, waterproof, anti-corrosive gas and medium them lightening protection in all kinds of environments. Weighing Scale, weighing equipment, weighing, truck weigh scale, truck weigh scales, electronic truck scale, digital truck scale, axle scale, digital railway scale, explosion-proof truck scale, car scale, construction truck weighing scale, weighbridge, weighing systems, tank and hopper weighing and vehicle scales Technical Parameter:

Rated Load:	10/20/30/50/100/150t
Sensitivity:	(2.0±0.1%) m V/V
Combined Error:	±0.05% F.S
Creep Error（30min）:	±0.02% F.S
Zero Balance:	±1% F.S
Tco:	±0.02% F.S/10℃
Tc Span:	±0.02% F.S/10℃
Input Resistance:	750±5Ω
Output Resistance:	701±2Ω
Insulation Resistance:	≥5000MΩ
Operating Temp. Range:	-30~+70℃
Maximum Safe Over Load:	150%F.S
Ultimate Over Load:	250%F.S
Recommend Excitation:	10~12V DC
Maximum Excitation:	15V DC
Sealing Class:	IP67/IP68
Element Material:	-A: Alloy Steel, -SS: Stainless Steel
Cable:	Length=16m(10,25,40t), 20m(60,100t)
Citation:	GB/T7551-2008/ OIML R60
Mode Of Connection:	Red(Input+),Black(Input-),Green(Output+),White(Output-)
