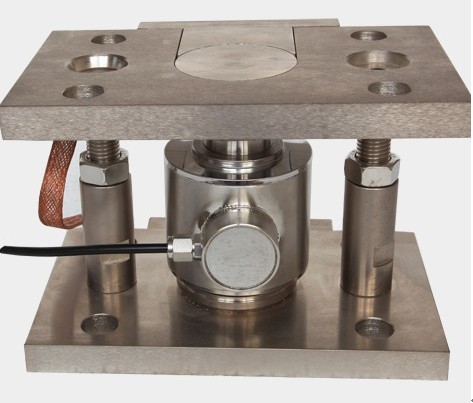

Compression Column Load Cells

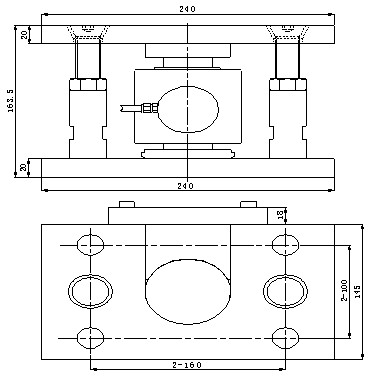

Dimension:
Product Descriptions:
Compression column load cells LL402-M load cells are available in the capacities 10~50t. We can produce the load cell with analog load cells, digital load cells, wireless load cells, stainless steel load cells, alloy steel load cell, high temperature load cell, anti-lighting load cell. They offer alloy steel or stainless steel construction, electronic hermetic sealing, oil proof, waterproof, anti-corrosive gas and medium them lightening protection in all kinds of environments. Weighing Scale, weighing equipment, weighing, truck weigh scale, truck weigh scales, electronic truck scale, digital truck scale, axle scale, digital railway scale, explosion-proof truck scale, car scale, construction truck weighing scale, weighbridge, weighing systems, tank and hopper weighing and vehicle scales
Technical Parameter:
Rated Load: |
10/20/25/30/40/50t |
| Sensitivity: | (3.0±0.1%) mV/V |
| Combined Error: | ±0.05% F.S |
| Creep Error（30min）: | ±0.02% F.S |
| Zero Balance: | ±1% F.S |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ |
| Temp. Effect On Span: | ±0.02% F.S/10℃ |
| Input Resistance: | 750±5Ω |
| Output Resistance: | 702±2Ω |
| Insulation Resistance: | ≥5000MΩ |
| Operating Temp. Range: | -30~+70℃ |
| Maximum Safe Over Load: | 150%F.S |
| Ultimate Over Load: | 250%F.S |
| Recommend Excitation: | 10~12V DC |
| Maximum Excitation: | 15V DC |
| Sealing Class: | IP67/IP68 |
| Element Material: | -A: Alloy Steel, -SS: Stainless Steel |
| Cable: | Length=15m |
| Citation: | GB/T7551-2008/ OIML R60 |
| Mode Of Connection: | Red(Input+),Black(Input-),Green(Output+),White(Output-) |
