Compression Load Cell

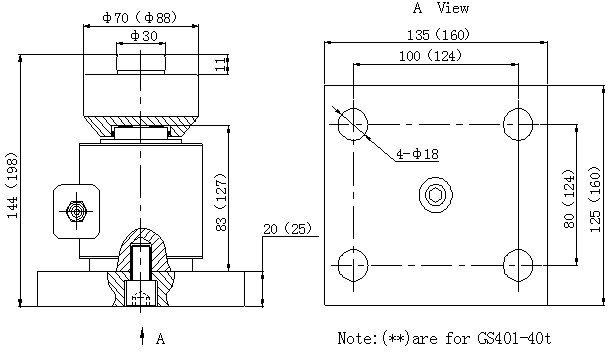

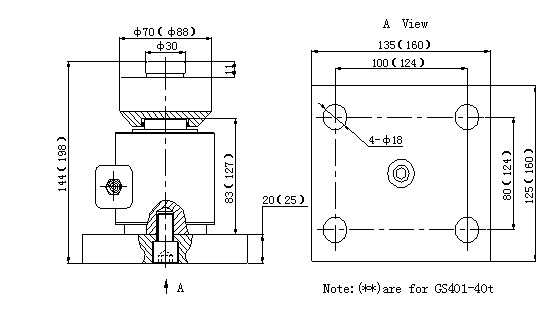

Dimensions:
Product Characteristics:
Compression load cell LL401-MA is a multi-column, low profile, compression load cell. The unique four column design offers excellent insensitivity to eccentric loads whilst maintaining accuracy. This product is, without doubt, one of the most successful compression cells ever produced and is suitable for use in road and rail weighbridges and process weighing applications. The fully leak-tested welded construction, advanced cable entry and built-in surge protection tubes ensure that this product can be used successfully in harsh environments. This product meets the stringent weights and measures requirements throughout Europe. The load cell applications truck and rail weighbridges, silo and hopper weighing, process weighing and weighing equipment.
Technical Parameter:
| Rated Load: | 10/25/40/60/100t |
| Sensitivity: | (2.0±0.1%) mV/V |
| Combined Error: | ±0.05% F.S |
| Creep Error（30min）: | ±0.02% F.S |
| Zero Balance: | ±1% F.S |
| Tco: | ±0.02% F.S/10℃ |
| Tc Span: | ±0.02% F.S/10℃ |
| Input Resistance: | 450±5Ω |
| Output Resistance: | 481±2Ω |
| Insulation Resistance: | ≥5000MΩ |
| Operating Temp. Range | -30~+70℃ |
| Maximum Safe Over Load: | 150%F.S |
| Ultimate Over Load: | 250%F.S |
| Recommend Excitation: | 10~12V DC |
| Maximum Excitation: | 15V DC |
| Sealing Class: | IP67/IP68 |
| Element Material: | A: Alloy Steel, -SS: Stainless Steel |
| Cable: | Length=16m(10,25,40t), 20m(60,100t) |
| Citation: | GB/T7551-2008/ OIML R60 |
| Mode Of Connection: | Red(Input+),Black(Input-),Green(Output+),White(Output-) |
