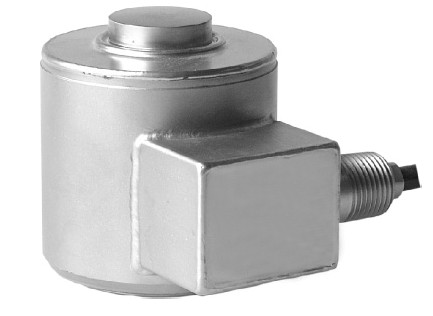

Compression Column Load Cell

LL401

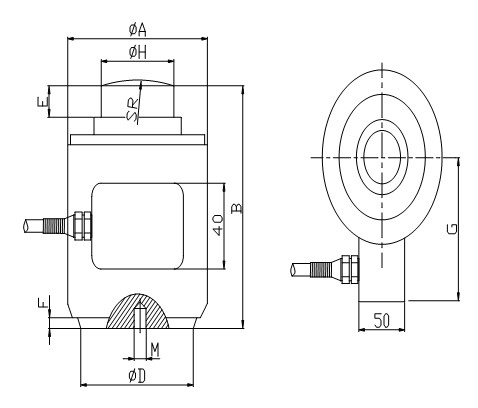

Dimensions Unit: mm

Cap./Size	A	B	C	D	E	F	G	H	M	SR
10~25t	73	82.5	12	58	6.5	1.8	64	31.8	M12x1.75	152
40~60t	105	127	34	82.5	8.0	11.0	87	58.7	M20x2.5	152
100t	152.4	184.2	72.3	123.8	23.6	21.8	108.2	79.2	M20x2.5	432

Product Characteristics:
Compression load cell / column load cell LL401 load cells are available in the capacities 10~100t and 10Klb to 500Klb. OIML approved load cells for trade approved applications. We can produce the load cell with analog load cells, digital load cells, wireless load cells, stainless steel load cells, alloy steel load cell, high temperature load cell, anti-lighting load cell. They offer electronic hermetic sealing, oil proof, waterproof, anti-corrosive gas and medium them lightening protection in all kinds of environments. Weighing Scale, weighing equipment, weighing, truck weigh scale, truck weigh scales, electronic truck scale, digital truck scale, axle scale, digital railway scale, explosion-proof truck scale, car scale, construction truck weighing scale, weighbridge, weighing systems, tank and hopper weighing.
Technical Parameter:

Rated Load:	10/25/40/60/100t
Sensitivity:	(2.0±0.1%) mV/V
Combined Error:	±0.05% F.S
Creep Error（30min）:	±0.02% F.S
Zero Balance:	±1% F.S
Tco:	±0.02% F.S/10℃
Tc Span:	±0.02% F.S/10℃
Input Resistance:	450±5Ω
Output Resistance:	481±2Ω
Insulation Resistance:	≥5000MΩ
Operating Temp. Range:	-30~+70℃
Maximum Safe Over Load:	150%F.S
Ultimate Over Load:	250%F.S
Recommend Excitation:	10~12V DC
Maximum Excitation:	15V DC
Sealing Class:	IP67/IP68
Element Material:	A: Alloy Steel, -SS: Stainless Steel
Cable:	Length=16m(10/25/40t), 20m(60/100t)
Citation:	GB/T7551-2008/ OIML R60
Mode Of Connection:	Red(Input+),Black(Input-),Green(Output+),White(Output-)
