Multi-column Load Cell
|
Capacity:
|
2000/3000/5000/
10000kN
|
Insulation Resistance:
|
＞2000MΩ
|
|
Accuracy:
|
0.1%FS
|
Temperature Effect On Sensitivity:
|
＜0.1%FS/ 10℃
|
|
Sensitivity:
|
2.0 ~2.5m V/V
|
Temperature Effect On Zero Balance:
|
＜0.1%FS/ 10℃
|
|
Non-Linearity:
|
≤0.1%FS
|
Reference Excitation Voltage:
|
10V (DC)
|
|
Repeatability:
|
≤0.05%FS
|
Nominal Range Of Excitation Voltage:
|
6~12V(DC)
|
|
Hysteresis:
|
≤0.1%FS
|
Service Temperature:
|
-30~70℃
|
|
Input Resistance:
|
380Ω
|
Safe Load Limit:
|
120%FS
|
|
Out Resistance:
|
350Ω
|
|
|
|

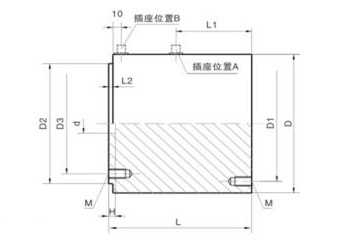

Cap./ Size
|
D
|
D1
|
D2
|
D3
|
d
|
L
|
L1
|
L2
|
H
|
M
|
|
2000kN
|
160
|
135
|
138
|
90
|
20
|
133
|
60
|
5
|
8
|
4-M10
|
|
3000kN
|
200
|
160
|
178
|
130
|
32
|
160
|
70
|
5
|
8
|
4-M10
|
|
5000kN
|
268
|
220
|
230
|
160
|
40
|
210
|
100
|
5
|
10
|
4-M10
|
|
10000kN
|
320
|
/
|
298
|
220
|
25
|
280
|
140
|
15
|
10
|
4-M12
|
