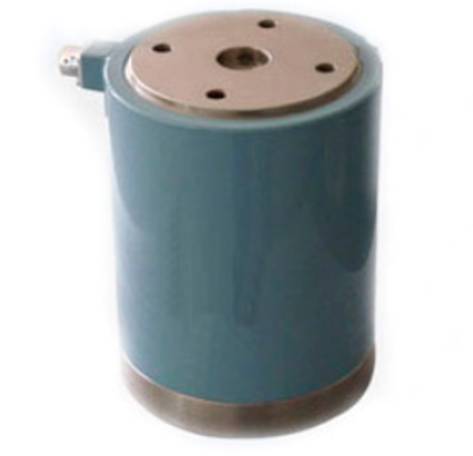

Weight Sensor / Column Load Cell
Product Characteristics:
Weight sensor / column load cell LL22 the type is a stainless steel or alloy steel self centering rocker column load cell with complete hermetic sealing. With wide range of capacities from 1000kN,2000kN,3000kN. OIML approved load cells for trade approved applications. We can produce the load cell with analog load cells, digital load cells, wireless load cells, stainless steel load cells, alloy steel load cell, high temperature load cell, anti-lighting load cell. It is a perfect fit for use in harsh industrial environments. Application in weighbridges, hoppers, tanks and silos, weigh, standard truck scales, portable truck scales, on-board truck scales, truck weigh scale, truck weigh scales, electronic truck scale, digital truck scale, axle scale, digital railway scale, explosion-proof truck scale, weighbridge, weighing systems.
Specifications:
| Capacity: | 1000kN,2000kN,3000kN |
| Combined Error: | ≤0.10%FS |
| Sensitivity: | 2.0±0.1%mV/V |
| Zero Balance: | ≤1.0%FS |
| Non-Linearity: | ≤0.10%FS |
| Repeatability: | ≤0.05%FS |
| Hysteresis: | ≤0.10%FS |
| Input Resistance: | 700Ω |
| Output Resistance: | 700Ω |
| Insulation Resistance: | ≥5000MΩ(50VDC) |
| Temperature Effect On Sensitivity: | ≤0.05%FS/10℃ |
| Temperature Effect On Zero Balance: | ≤0.05%FS/10℃ |
| Recommendatory Excitation Voltage: | 10V(DC) |
| Nominal Range Of Excitation Voltage: | 6~12V(DC) |
| Operating Temperature Range: | -30~+70℃ |
| Safe Overload: | 120%FS |
| Material: | Alloy steel/Stainless steel |
