Weight Load Cell
Dimension:
Product Characteristics:

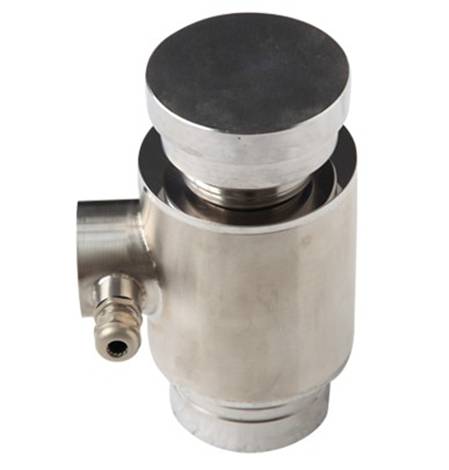

Weight load cell LL420MA load cell is a column, low profile, compression load cell. The construction offers excellent insensitivity to eccentric loads whilst maintaining accuracy. Model GS420 is a high capacity truck scale and silo load cell which is supplied complete with its own unique rocker mounting components. Suitable for all heavy duty weighing applications the GS420 gives the user high accuracy and low installation cost. The two additional sense wires feed back the voltage reaching the load cell. Complete compensation of change in lead resistance due to temperature change and/or cable extension, is achieved by feeding this voltage into the appropriate electronics. The type load cell is suitable for use in truck weighbridges, silo and hopper weighing, rail scales, process weighing.
Technical Parameter::
| Rated Load: | 10/20/ 30/50t |
| Sensitivity: | (2.0±0.1%) m V/V |
| Combined Error: | ±0.05% F.S |
| Creep Error（30min）: | ±0.02% F.S |
| Zero Balance: | ±1% F.S |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ |
| Temp. Effect On Span: | ±0.02% F.S/10℃ |
| Input Resistance: | 750±5Ω |
| Output Resistance: | 702±2Ω |
| Insulation Resistance: | ≥5000MΩ |
| Operating Temp. Range: | -30~+70℃ |
| Maximum Safe Over Load: | 150%F.S |
| Ultimate Over Load: | 300%F.S |
| Recommend Excitation: | 10~12V DC |
| Maximum Excitation: | 15V DC |
| Sealing Class: | IP67/IP68 |
| Element Material: | -A: Alloy Steel, -SS: Stainless Steel |
| Cable: | Length=13m |
| Citation: | GB/T7551-2008/ OIML R60 |
| Mode Of Connection: | Red(Input+),Black(Input-),Green(Output+),White(Output-) |
