Load Cells &Weigh Modules

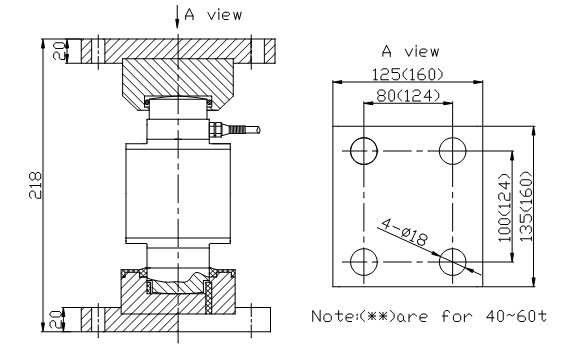

Dimensions:
Product Characteristics:

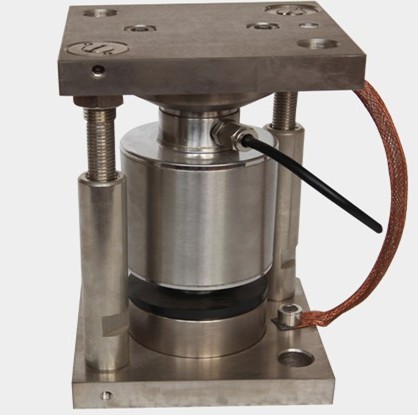

Load cells & weigh modules LL404-M is a column, low profile, compression load cell. We can produce the load cell with analog load cells, digital load cells, wireless load cells, stainless steel load cells, alloy steel load cell, high temperature load cell, anti-lighting load cell. The fully leak-tested welded construction, advanced cable entry and built-in surge protection tubes ensure this product can be used successfully in harsh environments. This product meets the stringent weights and measures requirements. This product is suitable for use in road and rail weighbridges and process weighing applications, truck and rail weighbridges, silo and hopper weighing, process weighing and weighing equipment.
Technical Parameter:
Rated Load: |
10/20/25/30/40/50/60t |
| Sensitivity: | (2.0±0.1%) m V/V |
| Combined Error: | ±0.02% F.S |
| Creep Error（30min）: | ±0.02% F.S |
| Zero Balance: | ±1% F.S |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ |
| Temp. Effect On Span: | ±0.02% F.S/10℃ |
| Input Resistance: | 750±5Ω |
| Output Resistance: | 702±2Ω |
| Insulation Resistance: | ≥5000MΩ |
| Operating Temperature Range: | -30~+70℃ |
| Maximum Safe Over Load: | 150%F.S |
| Ultimate Over Load: | 300%F.S |
| Recommend Excitation Voltage: | 10~12V DC |
| Maximum Excitation Voltage: | 15V DC |
| Sealing Class: | IP67/IP68 |
| Element Material: | -A: Alloy Steel, -SS: Stainless Steel |
| Cable: | Length=13m |
| Citation: | GB/T7551-2008/ OIML R60 |
| Mode Of Connection: | Red(Input+),Black(Input-),Green(Output+),White(Output-) |
