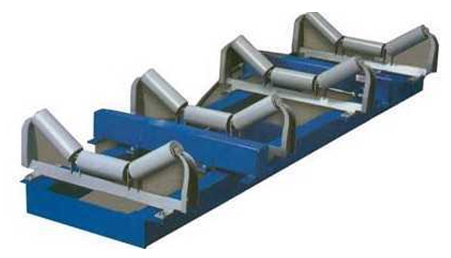

Electronic belt scale

Electronic belt scale working principle:

Electronic belt scale weighing bridge installed on the conveyor frame on, when the material after, measuring roller detection to the belt material weight through the leverage in the weighing sensor, produce a is proportional to the belt load voltage signal. Velocity sensor to the direct even in large diameter speed roller, provide a series of pulse, each pulse said a belt motion unit, pulse frequency is proportional to the belt speed. Weighing instrument from weighing sensor and speed sensor receiving signals, through the integral operation have a transient flow value and cumulative weight value, and were displayed.

Double roller electronic belt scale technical parameters (part)

1, double roller electronic belt scale belt width:
Usually produces width is 500 ~ 1400 mm, if you have special requirements, 300 ~ 500 mm, 1400 ~ 2400 mm can production.

2, double roller electronic belt scale belt speed:
Usually speed 0.8 ~ 4.0 m/s, not in this range can also design and produce.

3, double roller electronic belt scale power supply:
Power supply voltage: 187 ~ 242 vac; Frequency: fifty ± 1 hz; Power is not more than fifty w.

4, double roller electronic belt scale working environment:
Scale frame parts: - and ℃, instrument parts: - 10 ℃.

5, double roller electronic belt scale belt conveyor Angle:
Belt scale frame suitable for installation Angle had better not more than eighteen °, the smaller the Angle of weighing accuracy, especially the better ST4, had better not more than 6 °.

6, double roller electronic belt scale channel Angle:
Belt scale of grooved Angle had better not more than 35 °, channel Angle is smaller to weigh the better.
