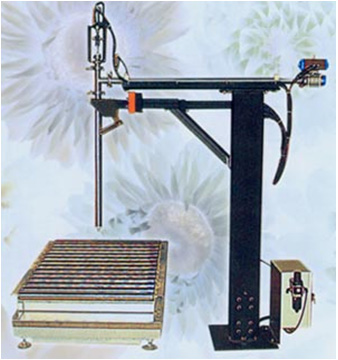

Liquid filling system can filling for trade use approved all kinds of containers, drum or plastic drum, can in 10 kg to 1000 kg between accurate quantitative filling.

The liquid filling system can in damp, dangerous or other adverse environment use.

Filling can be the following specifications of containers (metal/plastic) :

5 gallon pail -- twenty liters pail

6.5 gallons bottle (jar) - 30 liters glass bottle

15 gallons keg - 55 liters of keg

30 gallons and 55 gallon standard barrel - 110 liters and 200 liters of standard barrel

Large industrial barrel - general for 1000 kg barrel

Filling can be all kinds of materials:

Standard gun for 316 l materials, sealing material teflon,

Filling food, drug food grade gun

Filling acids/solvent type of ptfe/PVC/pp gun

No foam material head filling

Foam material subsurface filling

Liquid filling scale using gross type weighing way, basically have the following parts:

Gun device: manual type/semi-automatic type

Weighing device: ordinary/anti-corrosion type

Weighing control box: ordinary/anti-corrosion type/namur

Optional: delivery table, air draft hood, pressure barrel device, etc

Filling accuracy: ± 2 ‰;

Material viscosity: 20000 cp or less

Material temperature: 149 ℃ or less

The overall structure: high quality carbon steel + polyurethane coating;

Gun structure: 316 l stainless steel, teflon gasket and seal;

Material interface: DN40 standard flange, the pressure of not more than 0.8 MPa;

Air interface: pagoda joint, φ 8 mm oxygen hose connection;

Air parameters: pressure: 0.5 + / - 0.1 MPa; Consumption: twenty m3 / h

Power supply parameters: voltage: 220 v (15% ~ + 10%) frequency: hz plus or minus 2%

Line speed: sixty seconds a 200 litres of container filling
